A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown, LH side similar.
NOTE: Removal steps in this procedure may contain installation details.

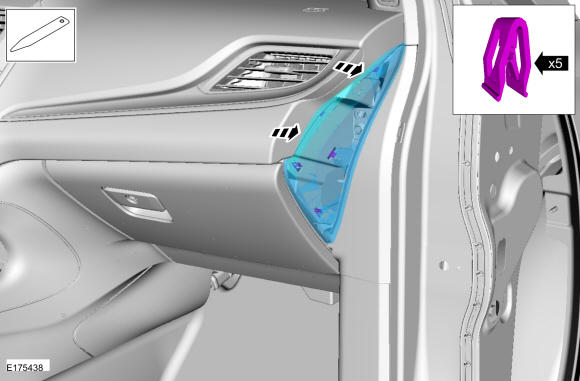

  1. Remove the instrument panel side trim panel.
    GFD229612Courtesy of FORD MOTOR COMPANY

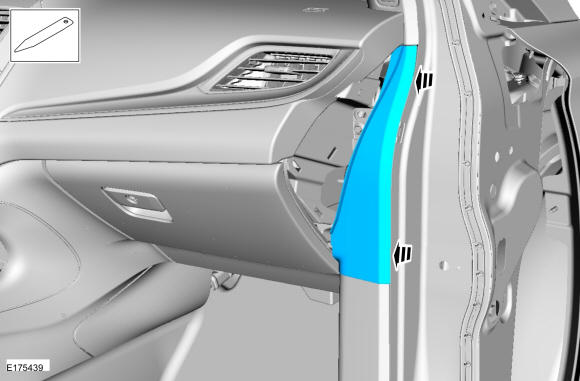

  2. Remove the upper cowl trim panel.
    GFD230056Courtesy of FORD MOTOR COMPANY

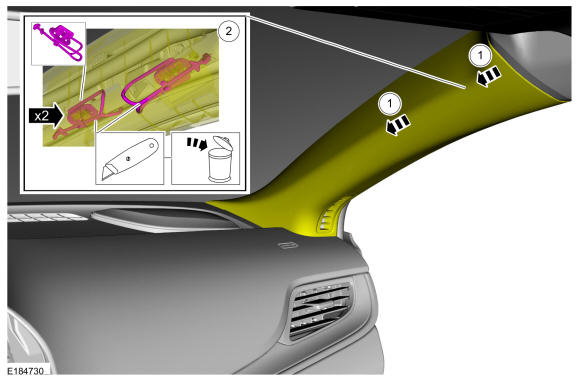

    1. Release the tether clips.
    2. NOTE: Replace A-pillar tether clips prior to installation.

      Cut and discard the A-pillar trim panel tether clips. Use the General Equipment: Knife

    GFD230057Courtesy of FORD MOTOR COMPANY

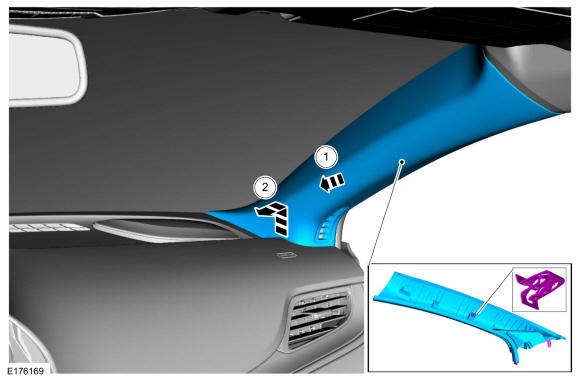

    1. Release the clip.
    2. Pull up and out to release the lower retainers and remove the A-pillar trim panel.
GFD230058Courtesy of FORD MOTOR COMPANY
