Overhead Console: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

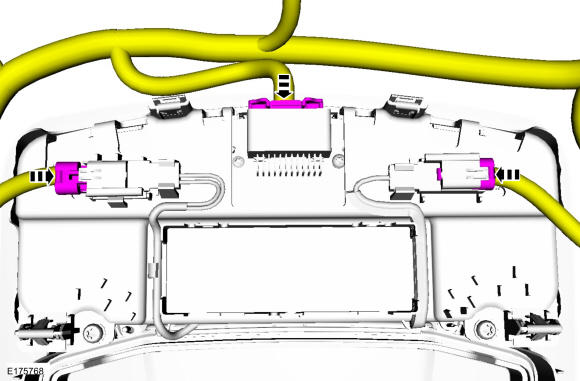

  1. Connect the electrical connectors.
    GFD230427Courtesy of FORD MOTOR COMPANY

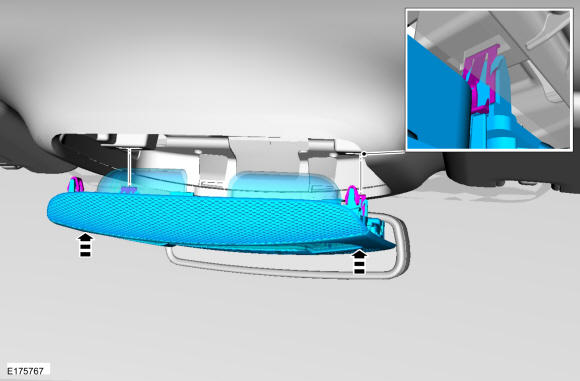

  2. Line up the center clips and install the overhead console.
GFD230428Courtesy of FORD MOTOR COMPANY
