Instrument Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Climate Control System - General Information .
NOTE: Make sure all openings are sealed.

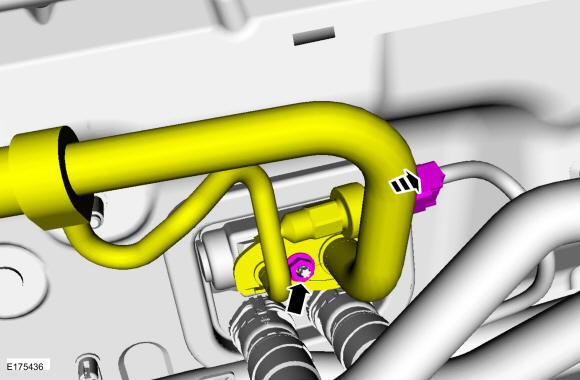

Remove the evaporator pipe nut, position the flange and pipe aside.
- Disconnect the electrical connector.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

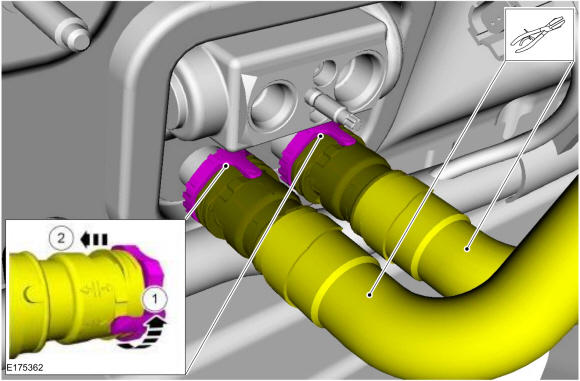

Clamp and disconnect the heater hoses.

Courtesy of FORD MOTOR COMPANY
Remove both front doors. Refer to: Front Door .

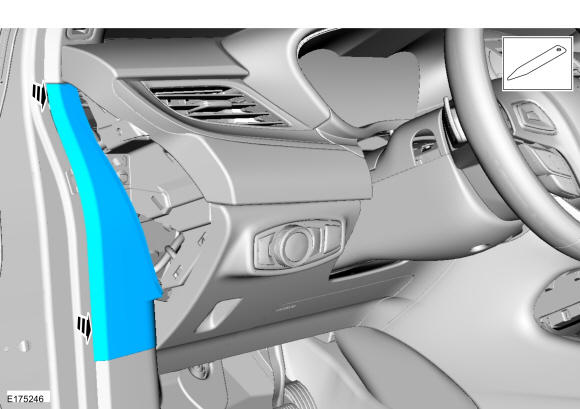

Remove the LH finish panel.

Courtesy of FORD MOTOR COMPANY
Remove the LH trim panel.

Courtesy of FORD MOTOR COMPANY

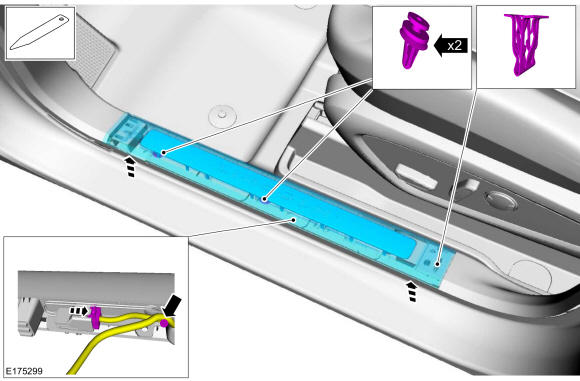

Remove the LH sill plate. Disconnect the electrical connector
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the hood release lever and the LH lower cowl trim panel.

Courtesy of FORD MOTOR COMPANY

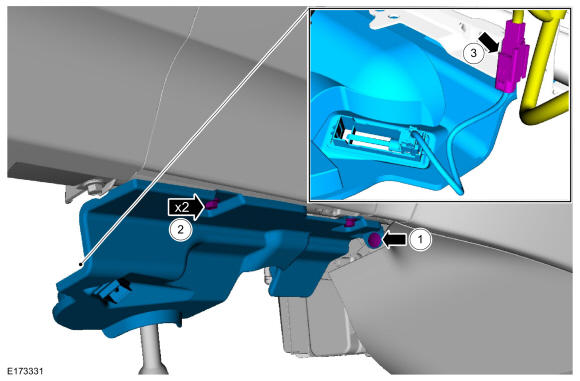

Remove the LH instrument panel lower insulator panel.
- Disconnect the electrical connector.
  Torque: 23 lb.in (2.6 Nm)
Courtesy of FORD MOTOR COMPANY

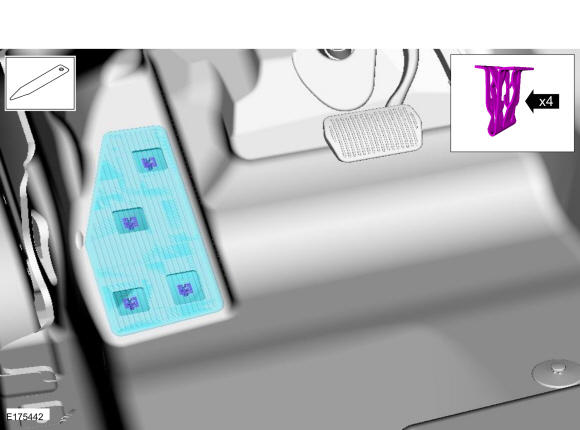

Remove the foot rest pad.

Courtesy of FORD MOTOR COMPANY

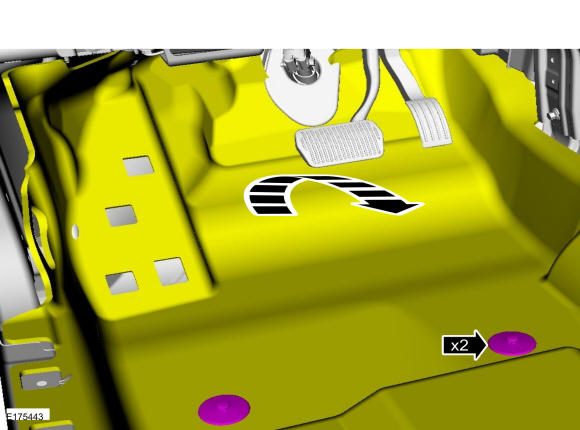

Position the carpet rearward.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

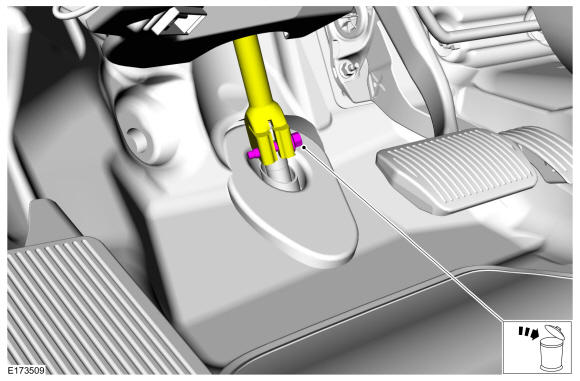

Remove and discard the steering shaft pinch bolt and position aside the lower steering column shaft.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

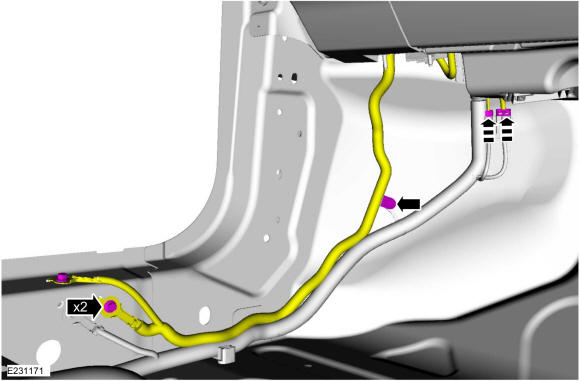

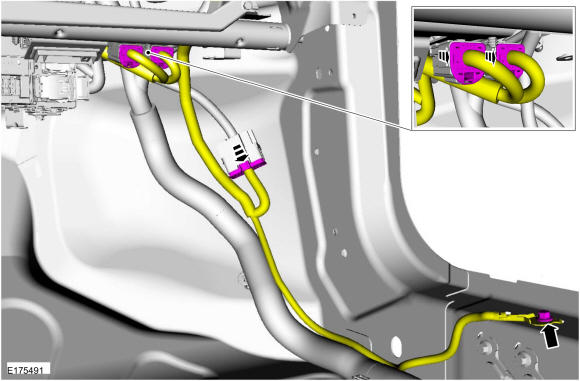

Remove the 2 bolts, release the wiring harness retainer and position aside the LH side harness.
- Disconnect the electrical connectors.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

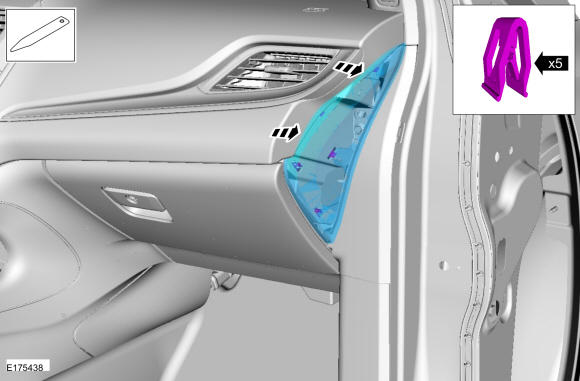

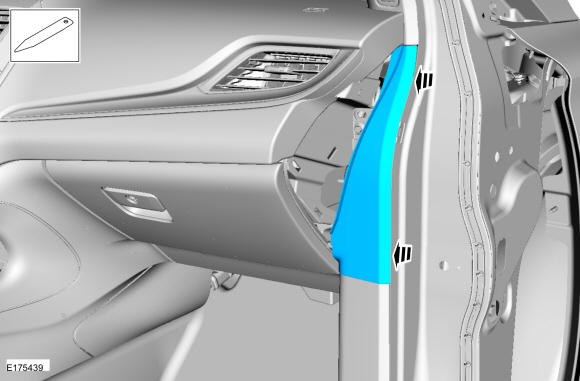

Remove the RH finish panel.

Courtesy of FORD MOTOR COMPANY

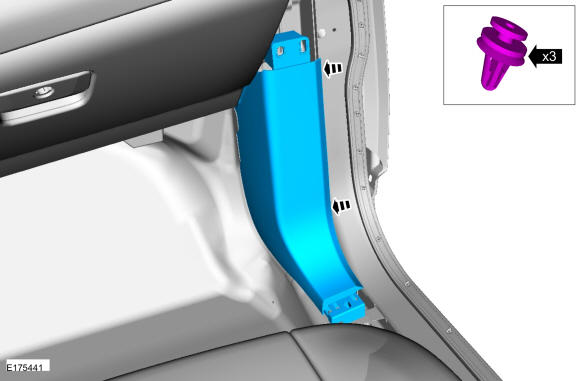

Remove the RH trim panel.

Courtesy of FORD MOTOR COMPANY

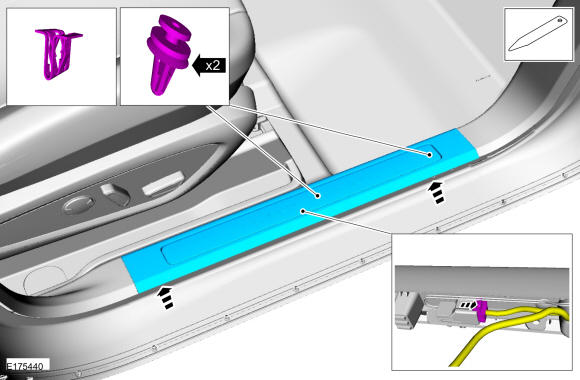

Remove the RH sill plate.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

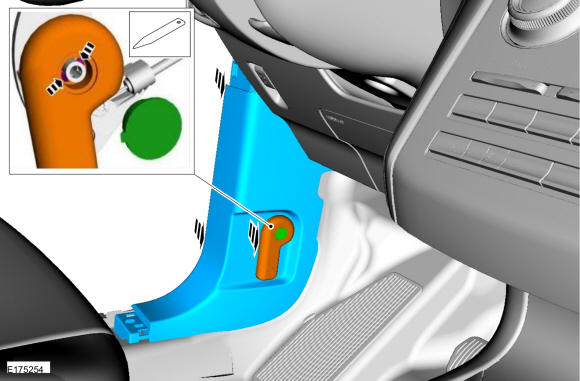

Remove the RH lower cowl trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the floor console. Refer to: Floor Console .

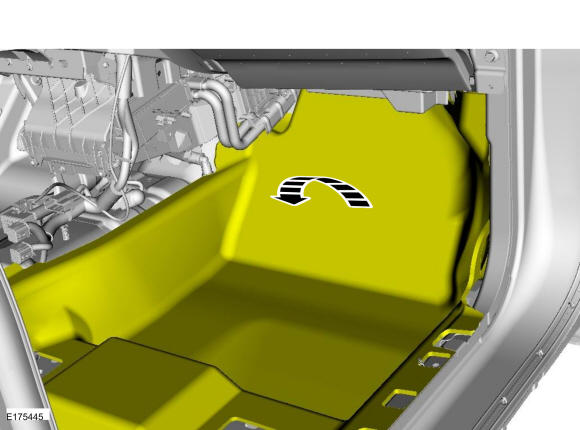

Position the carpet rearward.

Courtesy of FORD MOTOR COMPANY
Open the glove compartment.

Courtesy of FORD MOTOR COMPANY
Remove the 4 fasteners and the glove box.
- Disconnect the electrical connector.
  Torque: 35 lb.in (4 Nm)
Courtesy of FORD MOTOR COMPANY

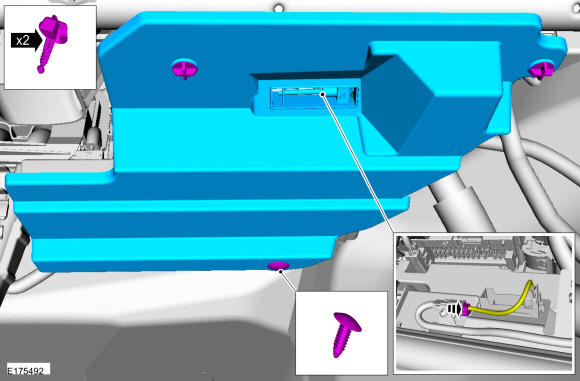

Remove the lower LH side instrument panel insulator.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the ground strap bolt.
- Disconnect the 3 electrical connectors.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

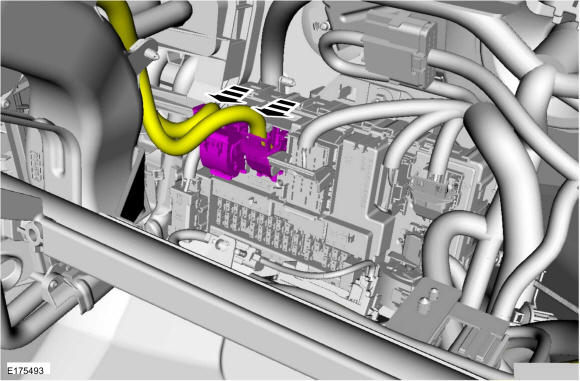

Disconnect the 2 electrical connectors.

Courtesy of FORD MOTOR COMPANY

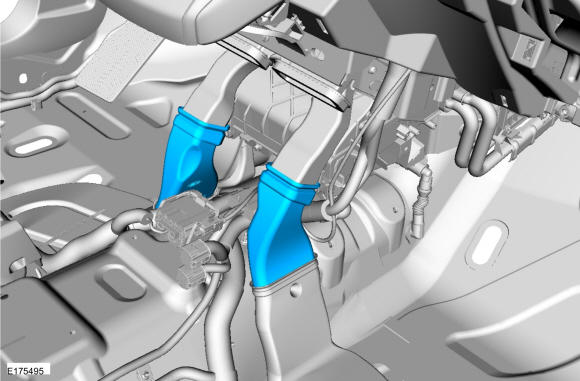

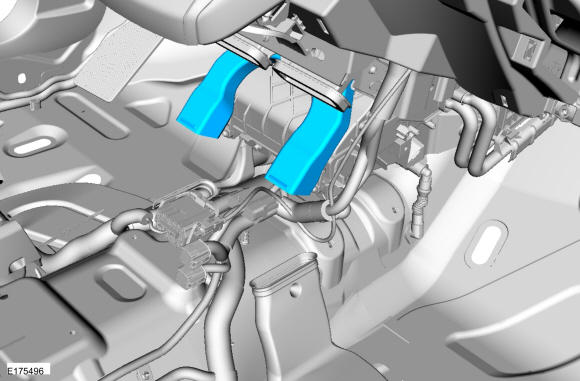

Remove the HVAC ducts.

Courtesy of FORD MOTOR COMPANY
Remove the HVAC ducts.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

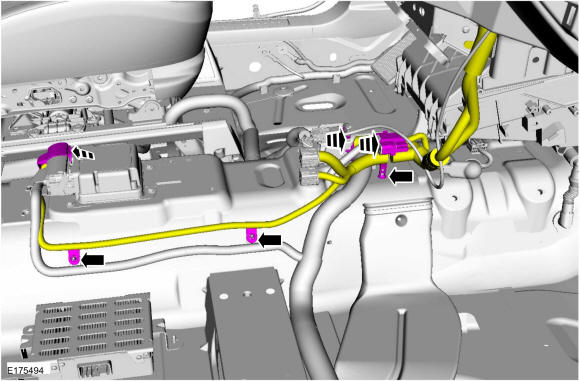

Disconnect the 3 electrical connectors and disengage the 3 harness retainers.

Courtesy of FORD MOTOR COMPANY

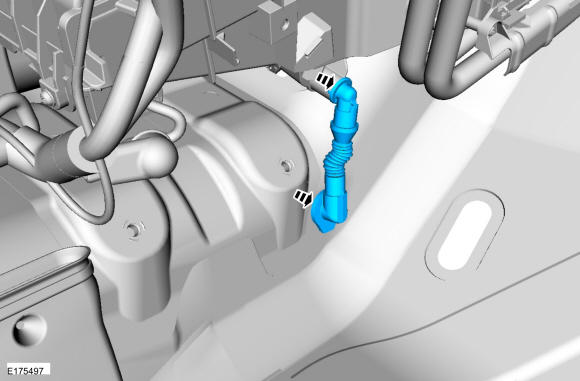

Remove the HVAC drain tube.

Courtesy of FORD MOTOR COMPANY
Remove the defrost vent trim panel. Refer to: Defrost Vent Trim Panel .

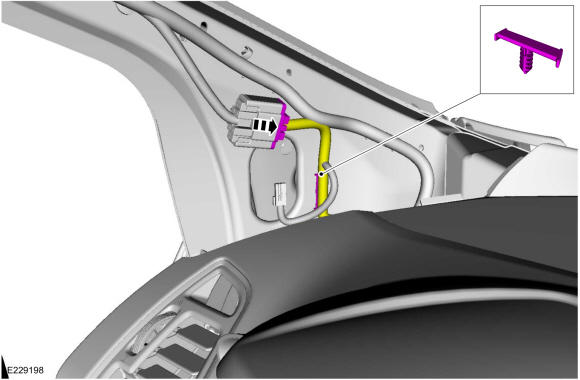

Disconnect the electrical connector at the drivers side A-pillar.
- Detach the harness retainer.
Courtesy of FORD MOTOR COMPANY

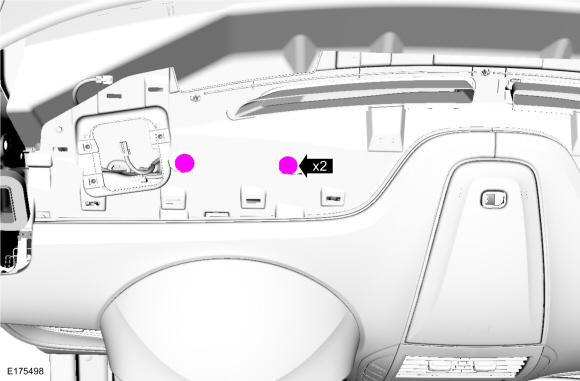

Remove 2 the upper instrument panel bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

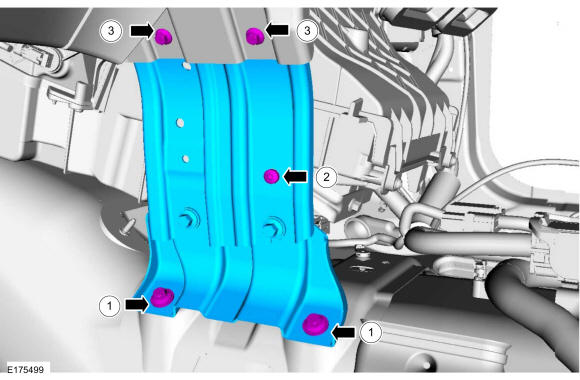

1. Remove the 2 bolts.
  Torque: 18 lb.ft (25 Nm)
2. Remove the screw.
  Torque: 22 lb.in (2.5 Nm)
3. Remove the 2 bolts and the instrument panel center brace.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Remove the bolts from one side completely and support the instrument panel before removing the bolts from the opposite side.

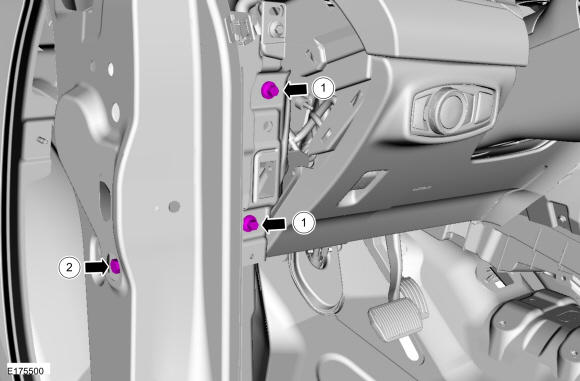

1. Remove the 2 LH instrument panel support bolts.
  Torque: 177 lb.in (20 Nm)
2. Remove the A-pillar to in-vehicle cross beam support bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

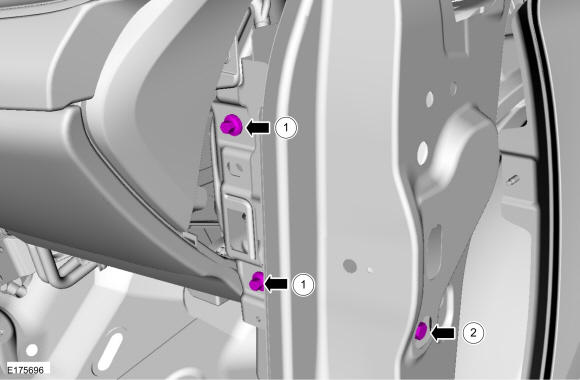

1. Remove the 2 RH instrument panel support bolts.
  Torque: 177 lb.in (20 Nm)
2. Remove the A-pillar to in-vehicle cross beam support bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.

NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

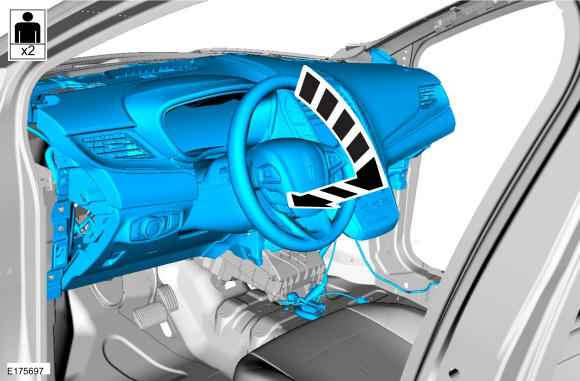

Rotate the instrument panel face down and remove through the LH front door opening.

GFD230410

Courtesy of FORD MOTOR COMPANY
