Instrument Panel Upper Section: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The instrument panel upper section is separated into LH and RH sections.

NOTE: The LH instrument panel upper section must be removed prior to removing the RH instrument panel upper section.

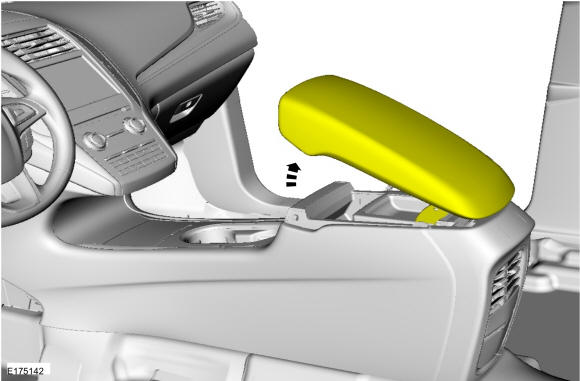

Open floor console arm rest.

Courtesy of FORD MOTOR COMPANY

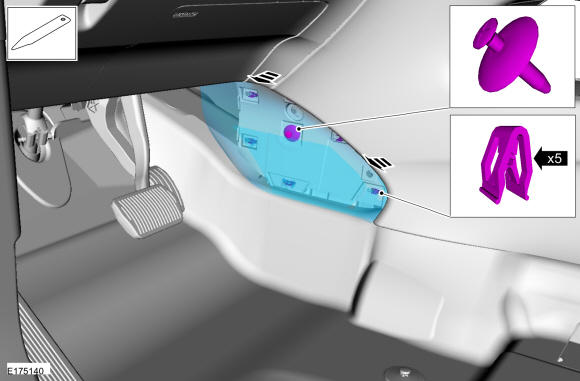

Using and interior trim removal tool, remove LH floor console trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: Release the clips at the center and rear of finish panel then remove from instrument panel by pulling rearward.

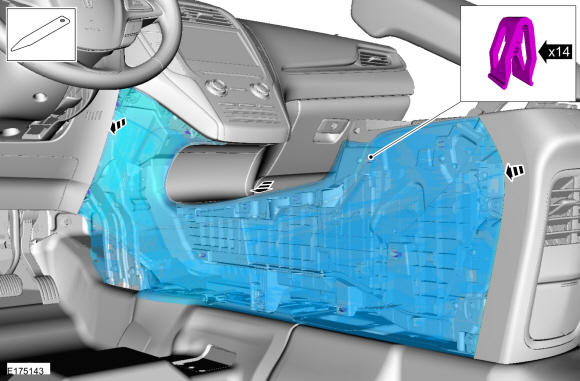

Remove LH floor console finish panel.

Courtesy of FORD MOTOR COMPANY

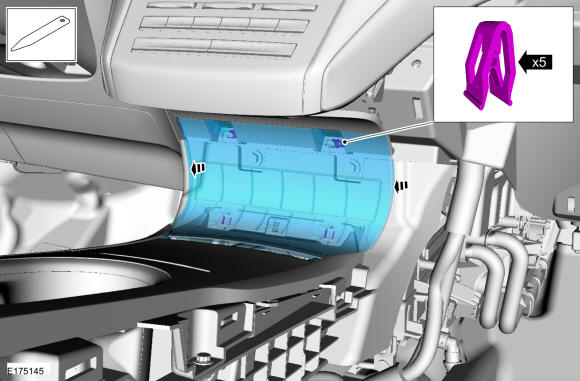

Remove the floor console front trim panel.

Courtesy of FORD MOTOR COMPANY

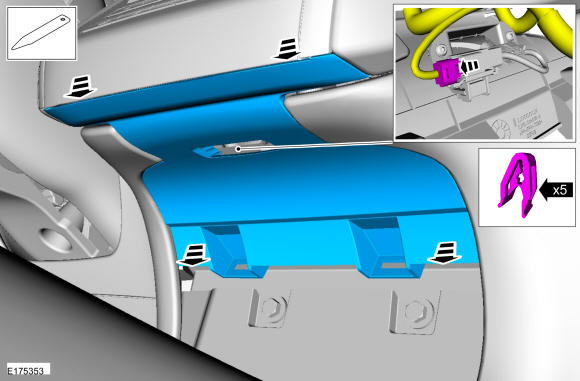

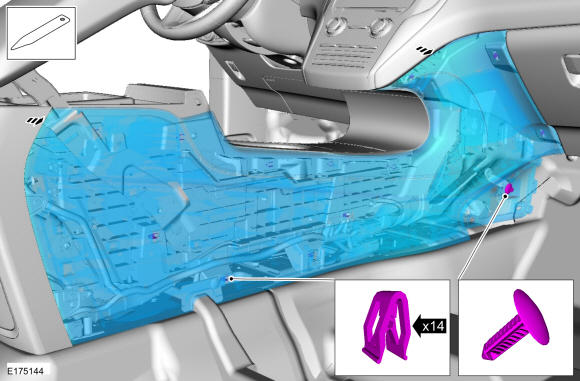

Remove the instrument panel lower center trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

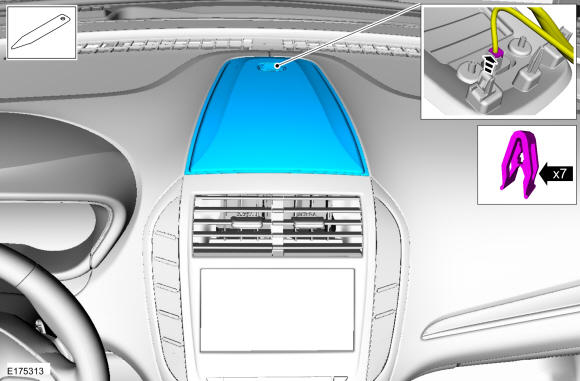

Remove the instrument panel center speaker grille.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

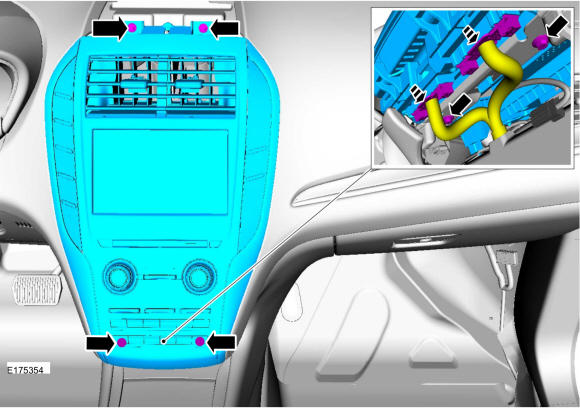

NOTE: The bottom FCIM fasteners are accessed from behind the FCIM.

Remove the 4 fasteners and the FCIM.
- Disconnect the electrical connectors.
  Torque: 23 lb.in (2.6 Nm)
Courtesy of FORD MOTOR COMPANY

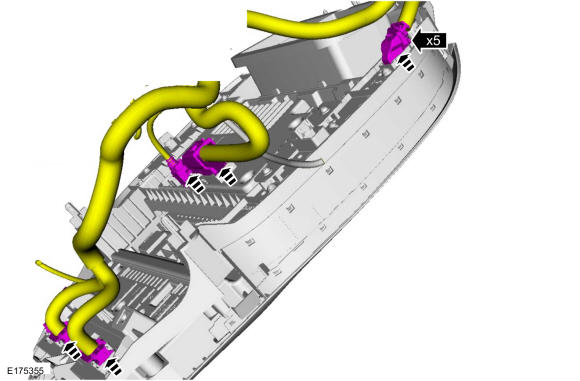

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

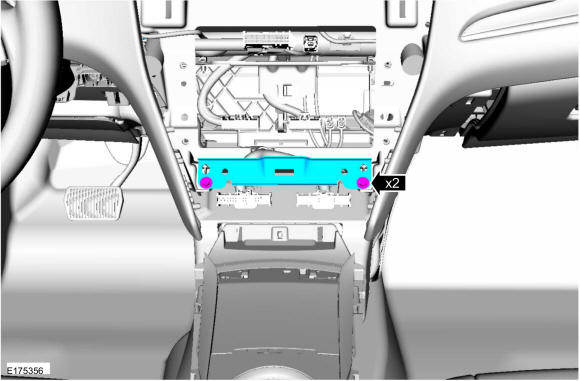

Remove the 2 fasteners and the lower instrument panel reinforcement bracket.
Torque: 23 lb.in (2.6 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH similar.

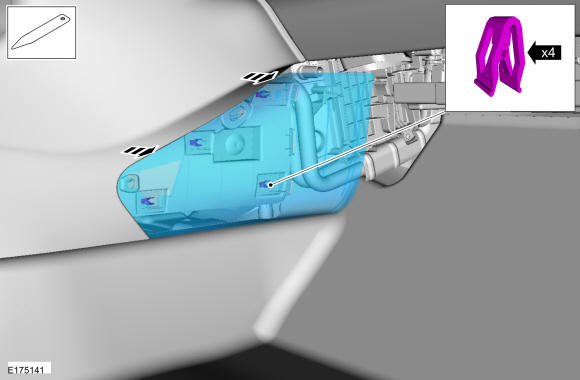

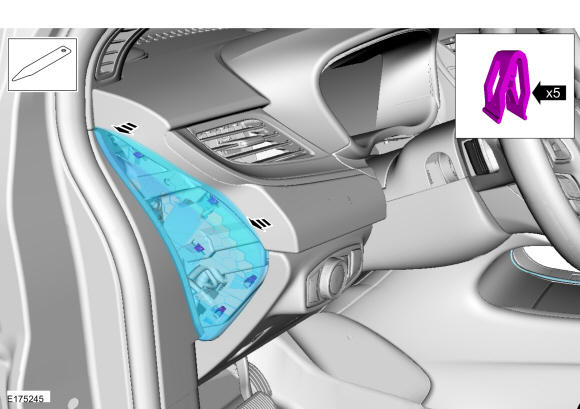

Remove both LH and RH instrument panel side trim panels.

Courtesy of FORD MOTOR COMPANY
Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

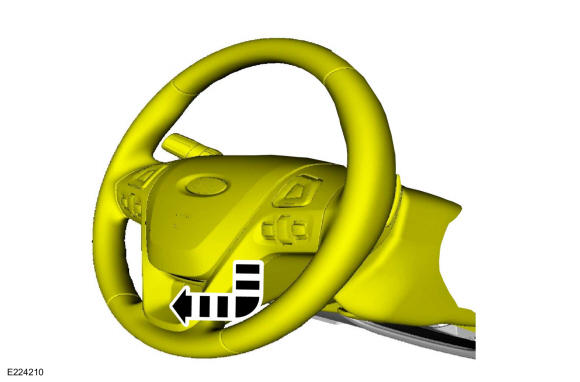

Fully lower and extend the steering column.

Courtesy of FORD MOTOR COMPANY

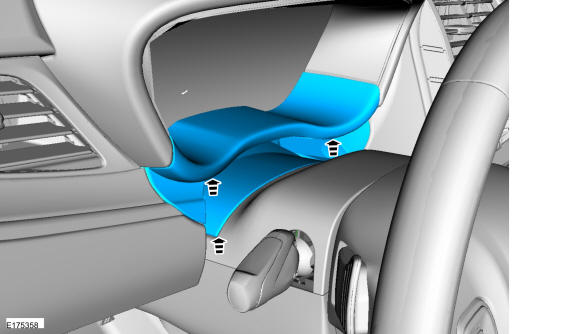

Remove the IPC trim panel.

Courtesy of FORD MOTOR COMPANY

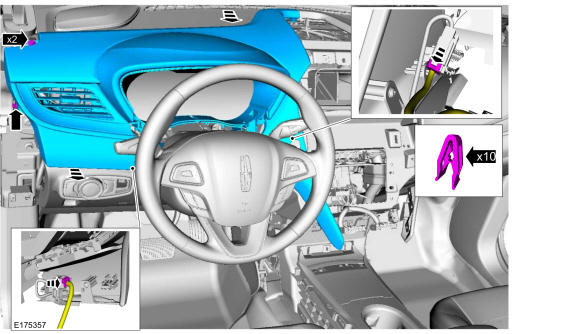

Remove the 2 fasteners and the LH instrument panel upper section.
- Release the ambient light clip from the LH side of instrument panel upper section panel.
- Disconnect the electrical connector and the harness retainer at the RH side of instrument panel upper section panel.
  Torque: 23 lb.in (2.6 Nm)
Courtesy of FORD MOTOR COMPANY
Remove RH floor console trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: Release the clips at the center and rear of finish panel then remove from instrument panel by pulling rearward.

Remove RH floor console finish panel.

Courtesy of FORD MOTOR COMPANY

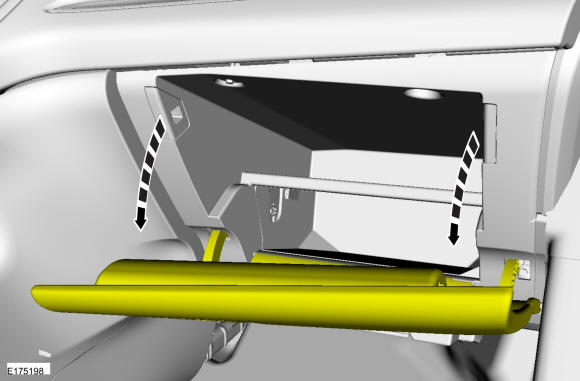

Open the glove compartment.

Courtesy of FORD MOTOR COMPANY

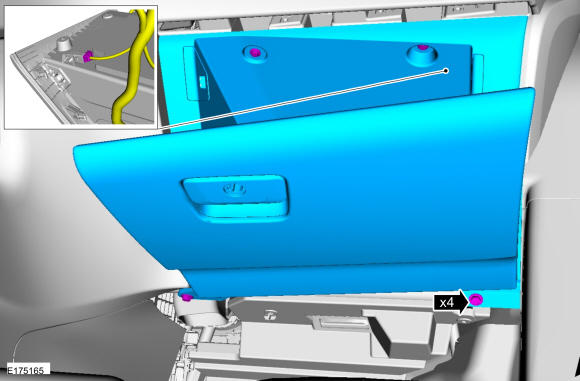

Remove the 4 fasteners and the glove compartment.
- Disconnect the electrical connector.
  Torque: 35 lb.in (4 Nm)
Courtesy of FORD MOTOR COMPANY
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

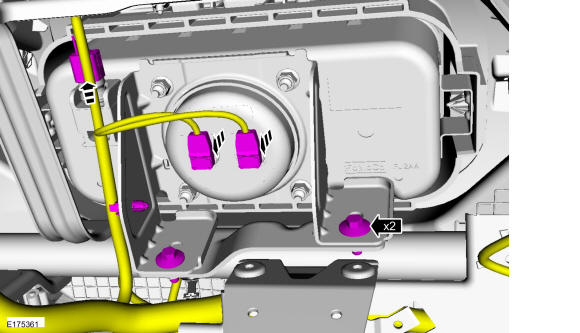

Remove the 2 bolts.
- Disconnect the 3 electrical connectors and detach the wiring harness push pin retainer.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

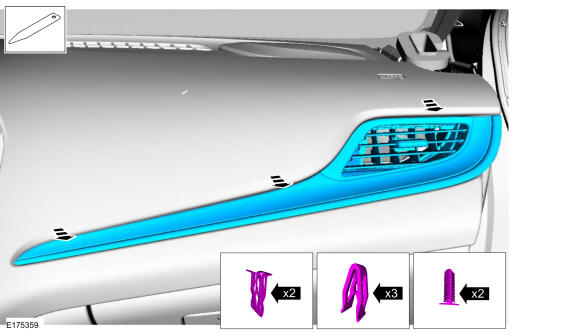

Remove the RH instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

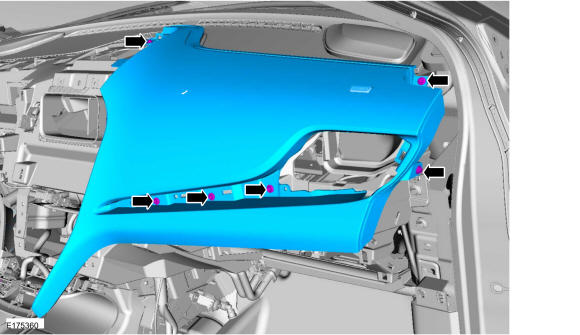

Remove the 6 fasteners and the RH instrument panel upper section.
Torque: 23 lb.in (2.6 Nm)

Courtesy of FORD MOTOR COMPANY
