Instrument Panel Lower Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH finish panel.
    GFD230385Courtesy of FORD MOTOR COMPANY
  2. Remove the LH trim panel.
    GFD230386Courtesy of FORD MOTOR COMPANY
  3. Remove the LH sill plate.

    • Disconnect the electrical connector.

    GFD230387Courtesy of FORD MOTOR COMPANY
  4. Remove the LH lower cowl trim panel.
    GFD230388Courtesy of FORD MOTOR COMPANY

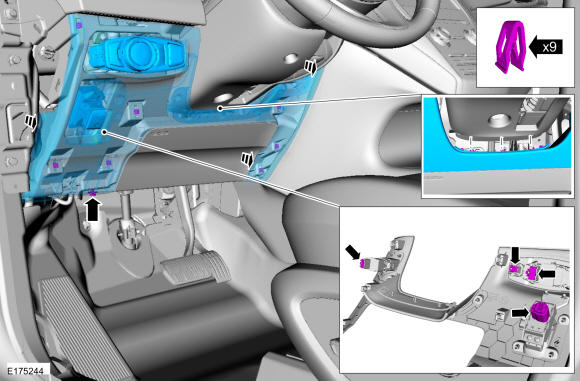

  5. Remove the fastener and the instrument panel lower trim panel. Disconnect the 4 electrical connectors.

    • Disconnect the 4 electrical connectors.

      Torque: 38 lb.in (4.3 Nm)

GFD230411Courtesy of FORD MOTOR COMPANY
