Floor Console: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY
Remove the LH trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the LH finish panel.

Courtesy of FORD MOTOR COMPANY
Remove the RH trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the RH finish panel.

Courtesy of FORD MOTOR COMPANY
Remove the floor console upper front trim panel.

Courtesy of FORD MOTOR COMPANY

Vehicles with power inverter
Remove the passengers side front seat. Refer to: Front Seat .

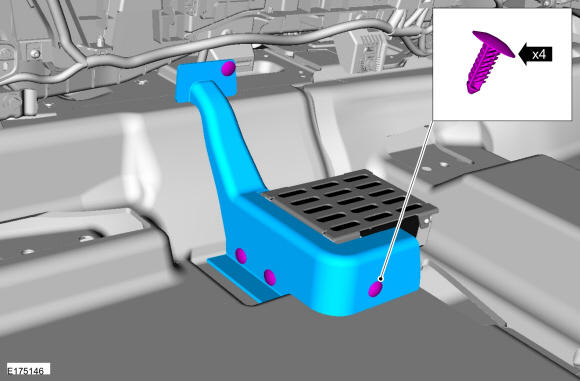

Remove the power inverter trim cover.

Courtesy of FORD MOTOR COMPANY

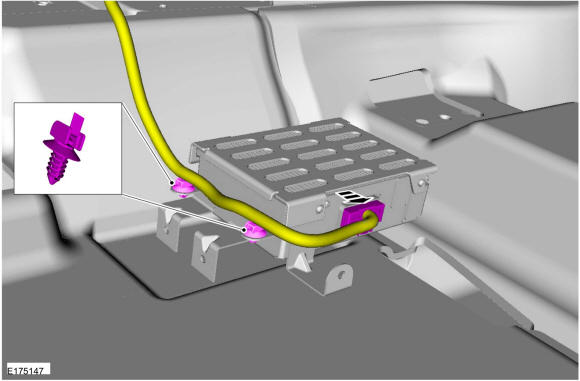

Disconnect the power inverter electrical harness and detach the two push pins.

Courtesy of FORD MOTOR COMPANY

All vehicles

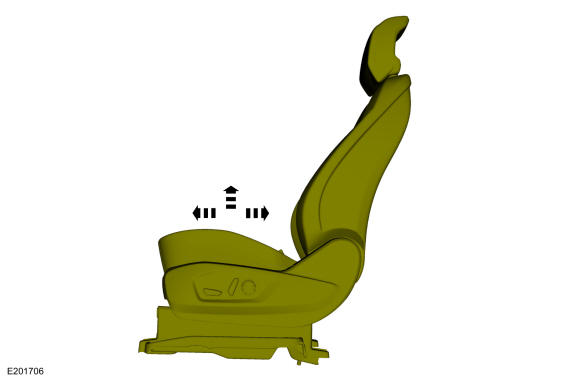

Position the seats to access the console bolts as required.

Courtesy of FORD MOTOR COMPANY

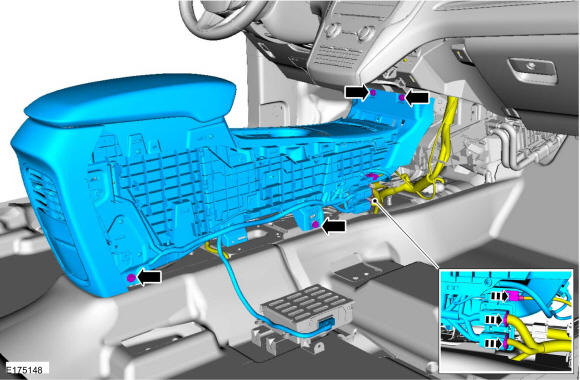

Disconnect the 3 electrical connectors, remove the 6 retainers and the floor console.
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
