Defrost Vent Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Using a interior trim removal tool remove the RH and LH A-pillar trim panels. Refer to: A-Pillar Trim Panel .

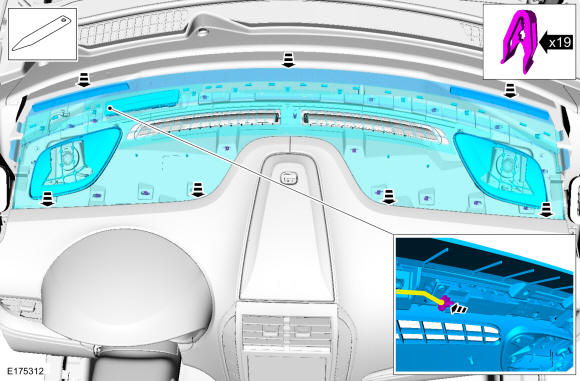

  2. Remove the defrost vent trim panel. If equipped, disconnect the HUD electrical connector.
GFD230369Courtesy of FORD MOTOR COMPANY
