Brake Vacuum Pump: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe 2.0L EcoBoost (177kW/240PS) - MI4 . or Air Cleaner Outlet Pipe 2.3L EcoBoost (201kW/273PS) .

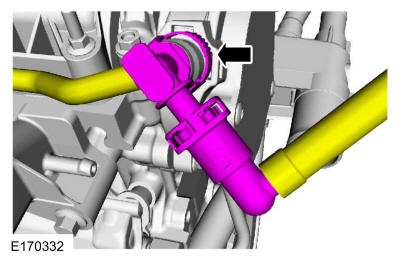

- Release the coupling and disconnect the vacuum tube.

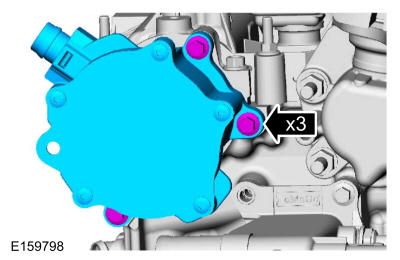

- Remove the bolts and the brake vacuum pump.
Torque: 89 lb.in (10 Nm)
-
NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.
Inspect the gasket and install new as necessary.
