Rocker Panel Moulding: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.

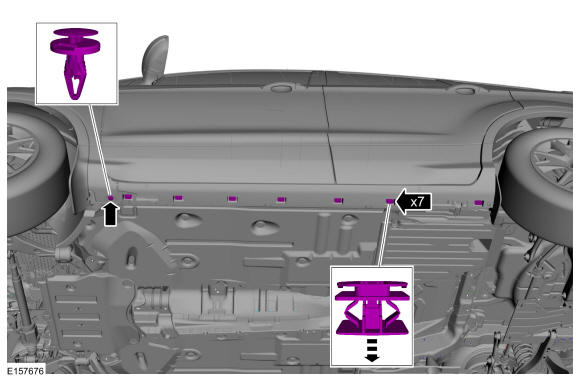

  1. Remove the pushpin retainer and release the clips on the underside of the rocker panel.
    GFD230140Courtesy of FORD MOTOR COMPANY

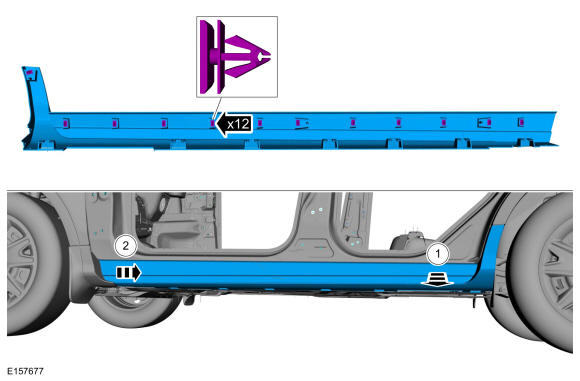

  2. NOTE: To avoid damage to the moulding, only use moderate force.

    1. Release the clips along the side of the rocker panel moulding.
    2. Slide rocker panel rearward and remove.

GFD230141Courtesy of FORD MOTOR COMPANY
