Rear Door Upper Moulding: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

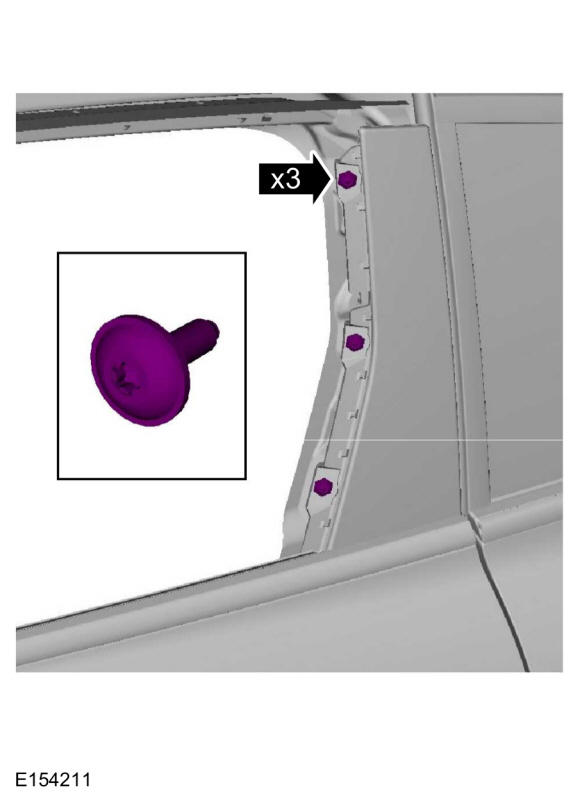

- Torque: 13 lb.in (1.5 Nm)

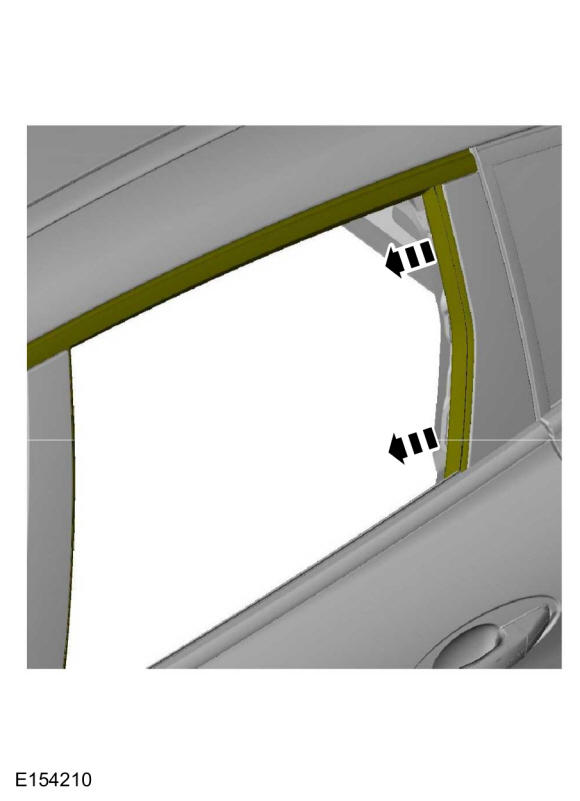

- Lower rear side door glass.

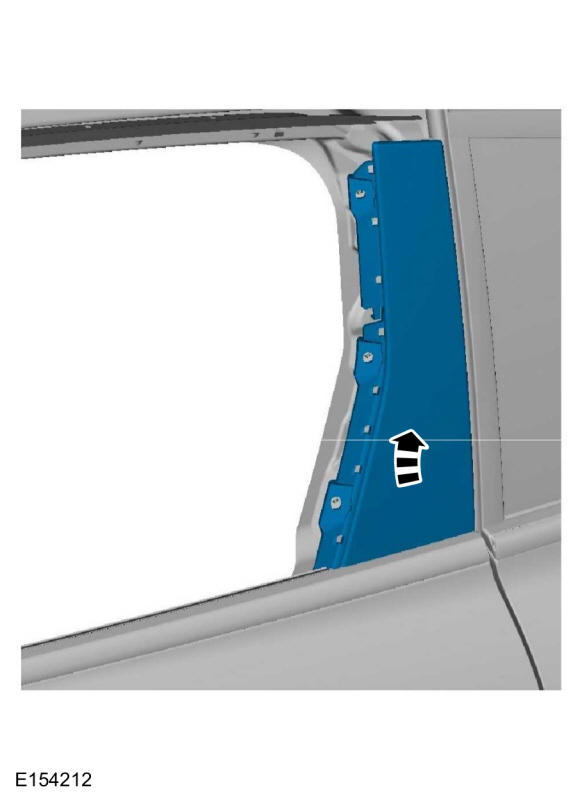

- Pull B-pillar glass run leg out of U-channel of door moulding. Refer to: Rear Door Glass Top Run
.
Torque: 17 lb.in (1.9 Nm)

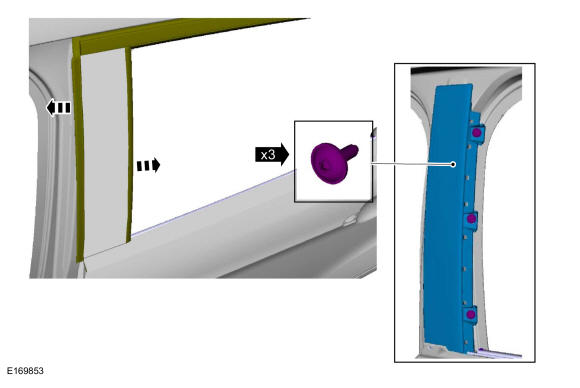

- Pull C-pillar glass run leg out of U-channel of upper door moulding. Refer to: Rear Door Glass Top Run
.
- Torque: 17 lb.in (1.9 Nm)
