Liftgate Moulding: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may include installation details.
  1. Remove the following items:

    1. Refer to: Liftgate Trim Panel .

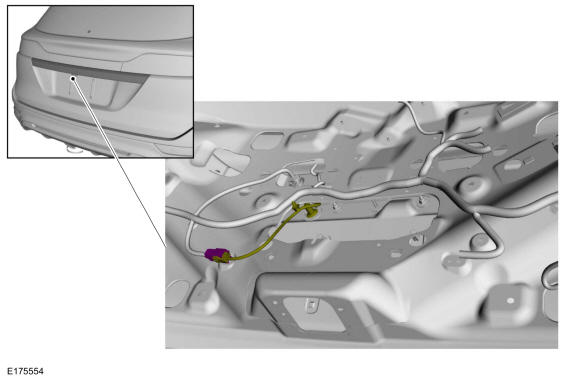

  2. GFD230115Courtesy of FORD MOTOR COMPANY
  3. Torque: 28 lb.in (3.2 Nm)

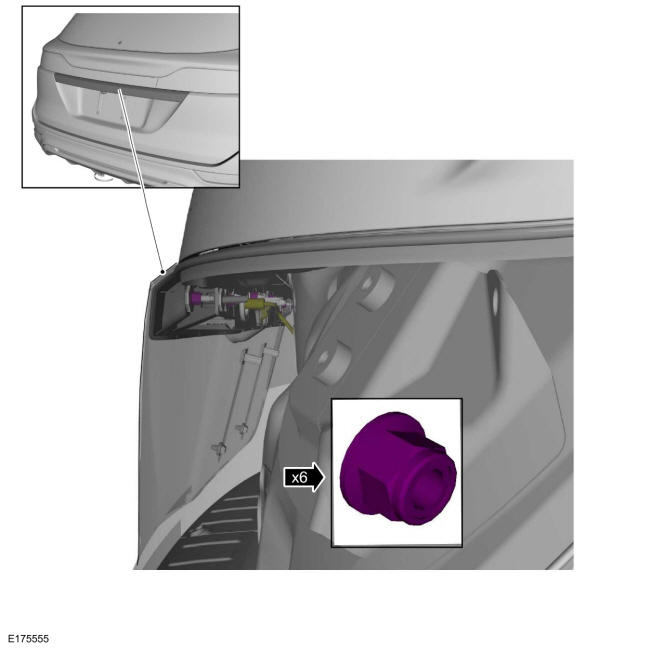

    GFD230116Courtesy of FORD MOTOR COMPANY

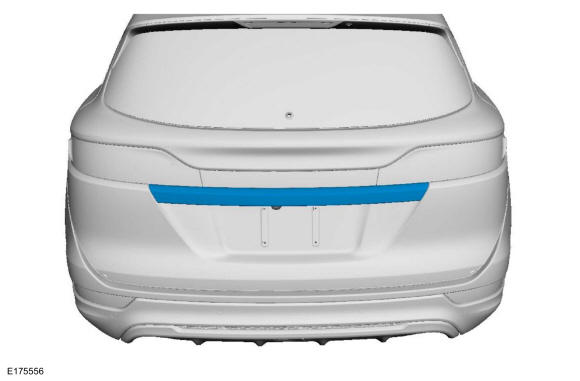

  4. GFD230117Courtesy of FORD MOTOR COMPANY
