D-Pillar Moulding: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with power liftgate

Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .
If equipped, remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit .
NOTE: LH shown, RH similar.

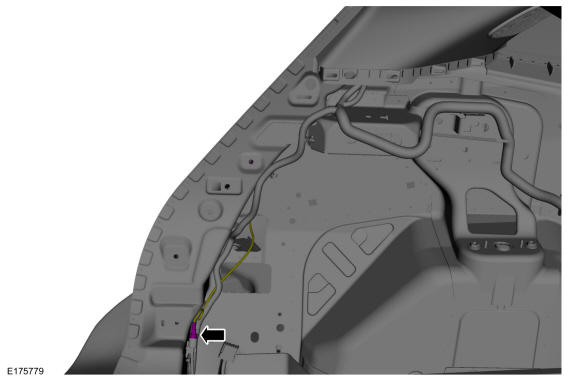

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: LH shown, RH similar.

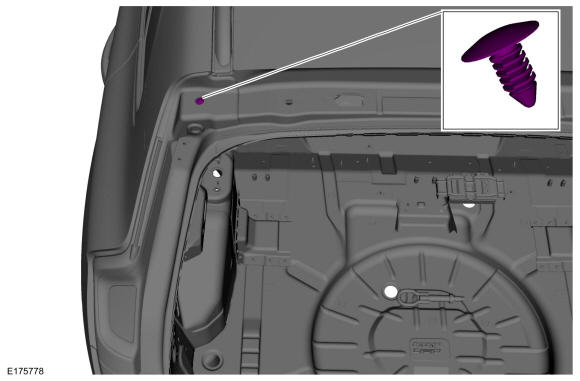

Remove the retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: LH shown, RH similar.

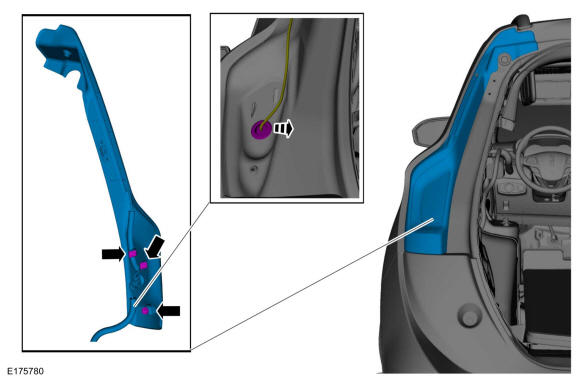

Remove the trim cover and route the electrical harness through the body grommet.

Courtesy of FORD MOTOR COMPANY

Vehicles with manual liftgate
NOTE: LH shown, RH similar.

Remove the retainer.

Courtesy of FORD MOTOR COMPANY

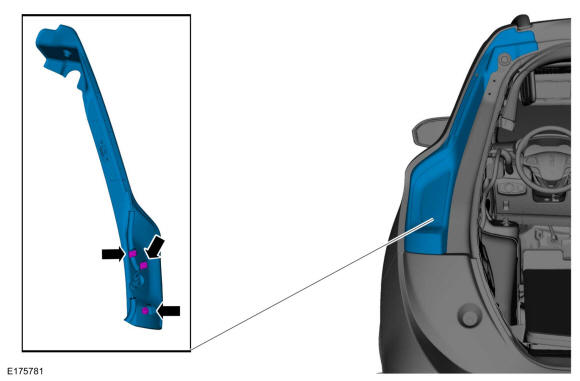

Remove the trim cover.

Courtesy of FORD MOTOR COMPANY
