Removal And Installation: Condenser: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
- Remove the CAC. Refer to: Charge Air Cooler (CAC) 2.0L EcoBoost (177kW/240PS) - MI4 .
-
NOTE: Make sure that all openings are sealed.NOTE: Discard the O-ring seals and gasket seals.

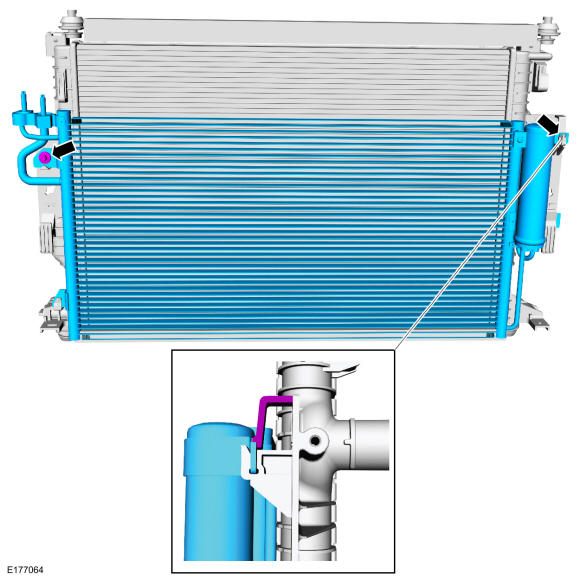

Remove the nuts and position the A/C lines aside.
Torque: 133 lb.in (15 Nm)
- Remove the bolt and the A/C condenser.
Torque: 62 lb.in (7 Nm)
