Climate Control Housing: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .
  2. Remove the driver knee airbag. Refer to: Driver Knee Airbag .
  3. Remove the steering wheel. Refer to: Steering Wheel .
  4. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove the bolt and disconnect the steering column shaft. Discard the bolt.

    Torque: 21 lb.ft (28 Nm)

    GFD226987Courtesy of FORD MOTOR COMPANY
  5. Remove the instrument panel lower trim panel. Refer to: Instrument Panel Lower Trim Panel .
  6. NOTE: Power adjustable steering column shown, manual adjustable steering column similar.

    Disconnect the electrical connectors and position the wiring harness aside.

    GFD227361Courtesy of FORD MOTOR COMPANY
  7. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove the bolts and the steering column. Discard the bolts.

    Torque: 21 lb.ft (28 Nm)

    GFD227362Courtesy of FORD MOTOR COMPANY

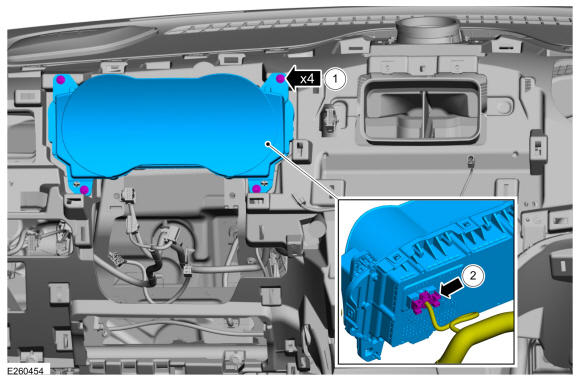

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the IPC.
    GFD229639Courtesy of FORD MOTOR COMPANY
  8. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

    GFD227498Courtesy of FORD MOTOR COMPANY

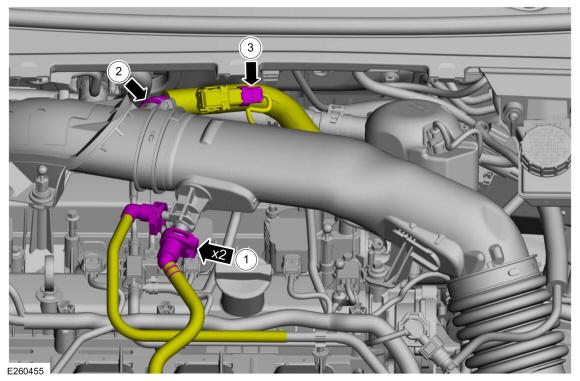

  9. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
    NOTE: 2.3L shown, 2.0L similar.

    1. Disconnect the quick release couplings. Refer to: Quick Release Coupling 2.3L EcoBoost (201kW/273PS) .
    2. Disconnect the quick release coupling.
    3. Disconnect the PCV sensor electrical connector.

    GFD229640Courtesy of FORD MOTOR COMPANY

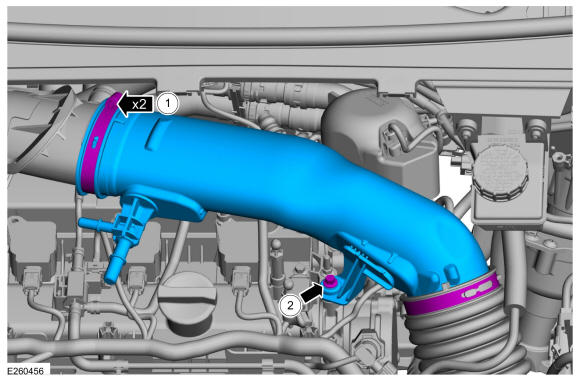

  10. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
    NOTE: 2.3L shown, 2.0L similar.

    1. Loosen the clamps.

      Torque: 44 lb.in (5 Nm)

    2. Remove the bolt and the air cleaner outlet pipe.

      Torque: 97 lb.in (11 Nm)

    GFD229641Courtesy of FORD MOTOR COMPANY
  11. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

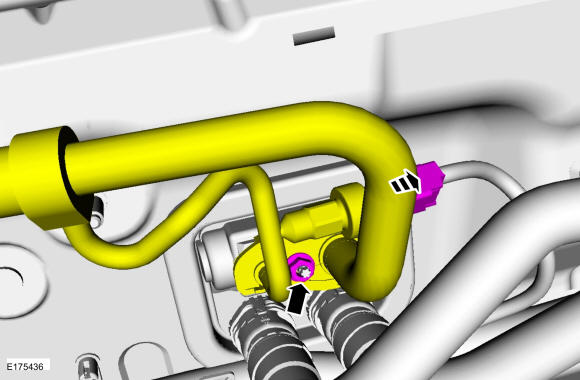

  12. Disconnect the electrical connector, remove the evaporator pipe nut and position the flange and pipe aside.

    • Make sure to cover any open ports to prevent debris from entering the system.

      Torque: 97 lb.in (11 Nm)

    GFD229642Courtesy of FORD MOTOR COMPANY

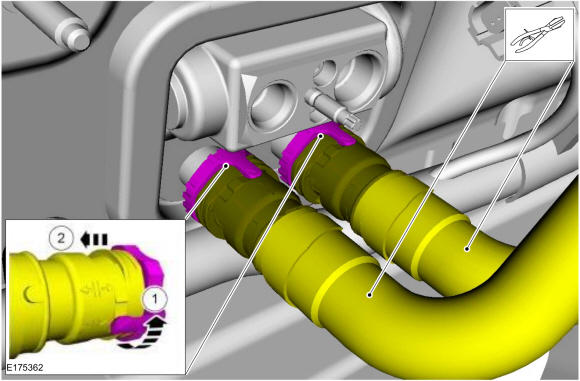

  13. Clamp and disconnect the heater hoses.

    • Make sure to cover any open ports to prevent debris from entering the system. Use the General Equipment: Hose Clamp(s)

    GFD229643Courtesy of FORD MOTOR COMPANY
  14. Remove both front doors. Refer to: Front Door .
  15. Release the clips and remove the foot rest pad. Use the General Equipment: Interior Trim Remover
    GFD229644Courtesy of FORD MOTOR COMPANY
  16. Remove both front seats. Refer to: Front Seat .
  17. Remove the retainers and position the carpet rearward.
    GFD229645Courtesy of FORD MOTOR COMPANY

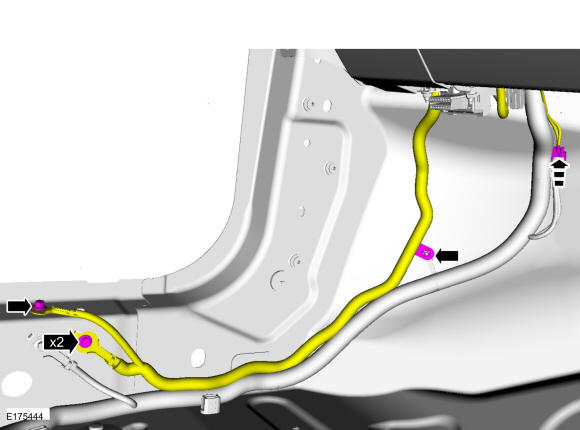

  18. Remove the bolts, release the wiring harness retainer and position the LH harness aside.

    • Disconnect the electrical connector.

      Torque: 106 lb.in (12 Nm)

    GFD229646Courtesy of FORD MOTOR COMPANY

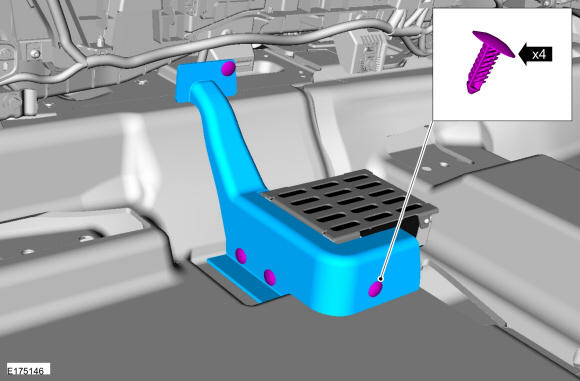

  19. Remove the push pin retainers and the power inverter trim cover.
    GFD229647Courtesy of FORD MOTOR COMPANY

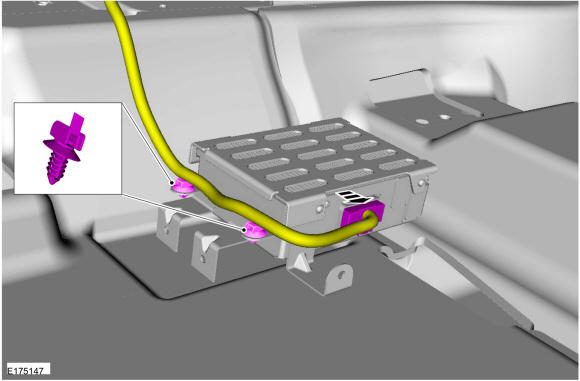

  20. Disconnect the power inverter electrical harness and detach the push pins.
    GFD229648Courtesy of FORD MOTOR COMPANY

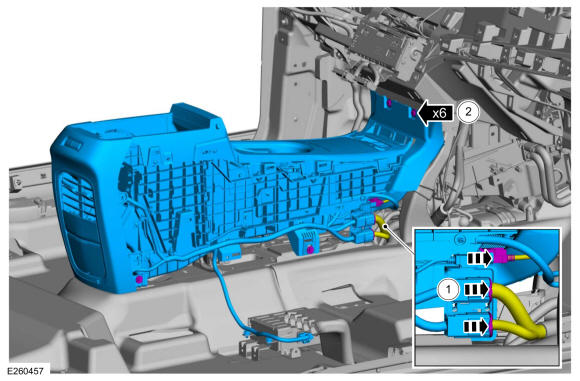

    1. Disconnect the electrical connectors.
    2. Remove the retainers and the floor console.

      Torque: 35 lb.in (4 Nm)

    GFD229649Courtesy of FORD MOTOR COMPANY

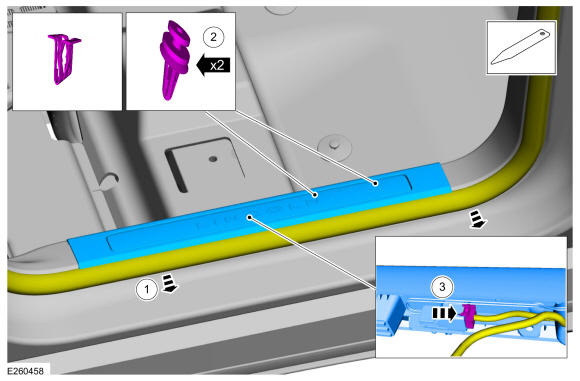

    1. Position the weatherstrip aside.
    2. Release the retainers.
    3. Disconnect the electrical connector and remove the RH sill plate. Use the General Equipment: Interior Trim Remover
    GFD229650Courtesy of FORD MOTOR COMPANY

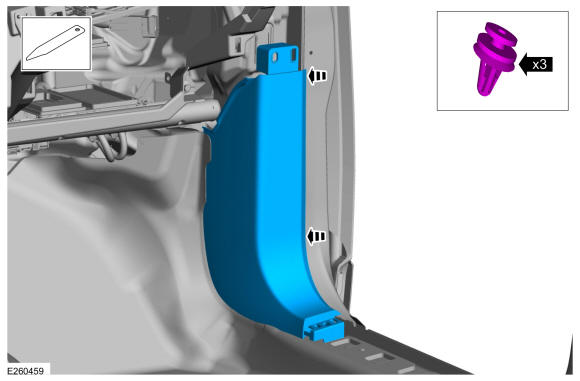

  21. Release the retainers and remove the RH lower cowl trim panel. Use the General Equipment: Interior Trim Remover
    GFD229651Courtesy of FORD MOTOR COMPANY

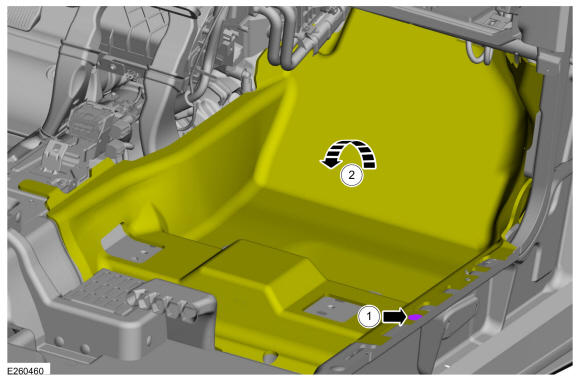

    1. Remove the push pin retainer.
    2. Position the carpet rearward.
    GFD229652Courtesy of FORD MOTOR COMPANY
  22. Remove the push pin retainer and the lower RH side instrument panel insulator.

    • Disconnect the electrical connector.

    GFD229616Courtesy of FORD MOTOR COMPANY

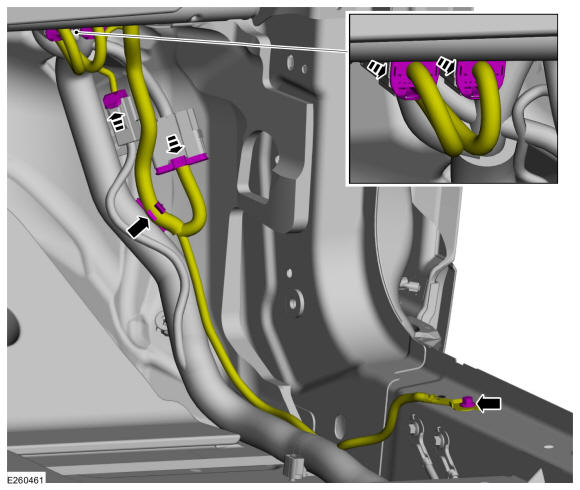

  23. Remove the bolt, disconnect the electrical connectors and position the wiring harness aside.

    Torque: 106 lb.in (12 Nm)

    GFD229653Courtesy of FORD MOTOR COMPANY

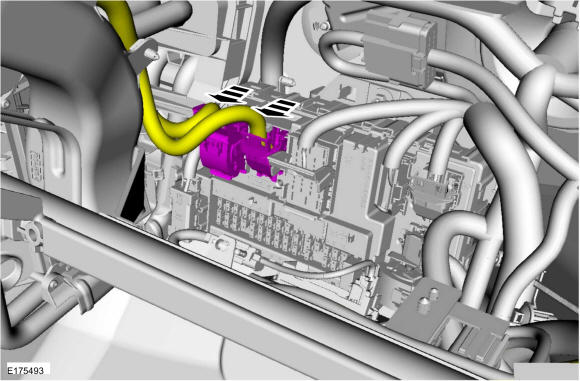

  24. Disconnect the electrical connectors.
    GFD229654Courtesy of FORD MOTOR COMPANY

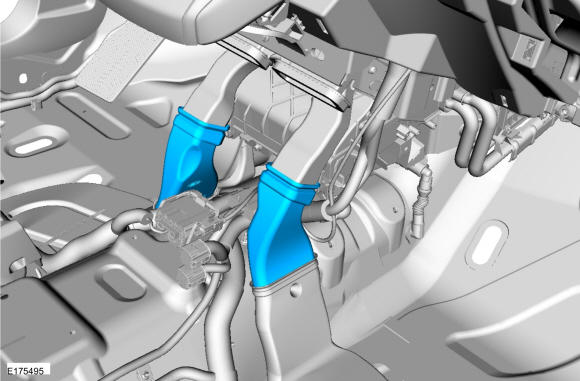

  25. Remove the HVAC ducts.
    GFD229655Courtesy of FORD MOTOR COMPANY

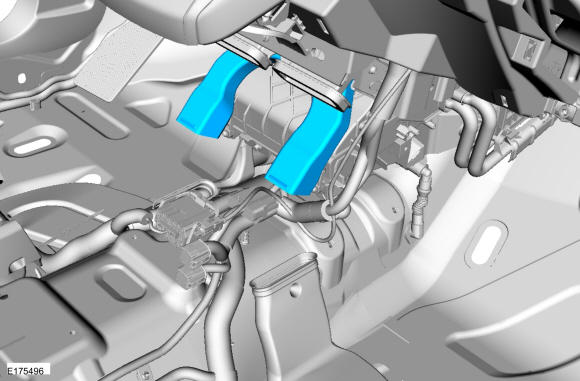

  26. Remove the HVAC ducts.
    GFD229656Courtesy of FORD MOTOR COMPANY

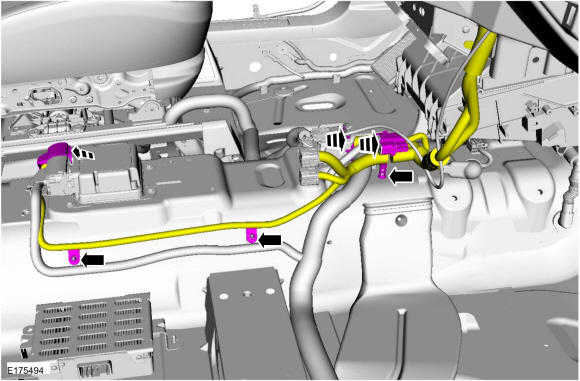

  27. Disconnect the electrical connectors and release the wiring harness.
    GFD229657Courtesy of FORD MOTOR COMPANY

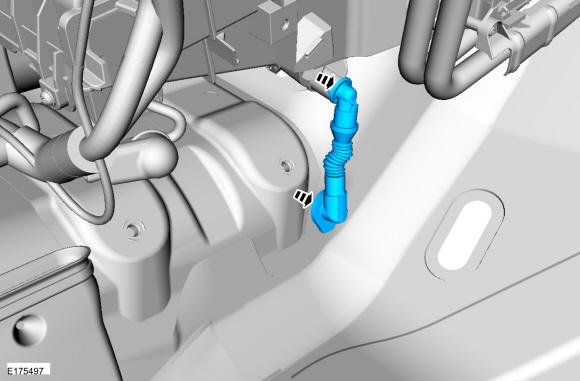

  28. Remove the HVAC drain tube.
    GFD229658Courtesy of FORD MOTOR COMPANY

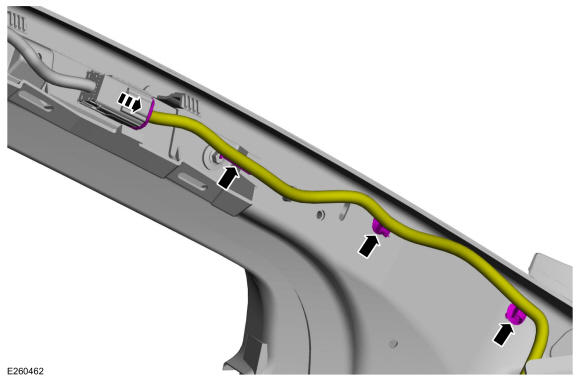

  29. Disconnect the electrical connector and detach the wiring harness.
    GFD229659Courtesy of FORD MOTOR COMPANY

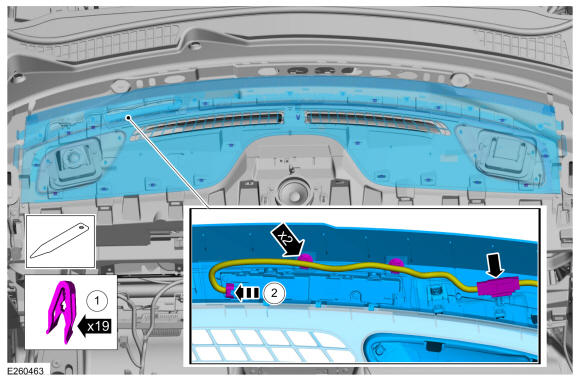

    1. Release the clips and remove the defrost vent trim panel.
    2. If equipped, Disconnect the electrical connectors and detach the HUD wiring harness.
    GFD229660Courtesy of FORD MOTOR COMPANY

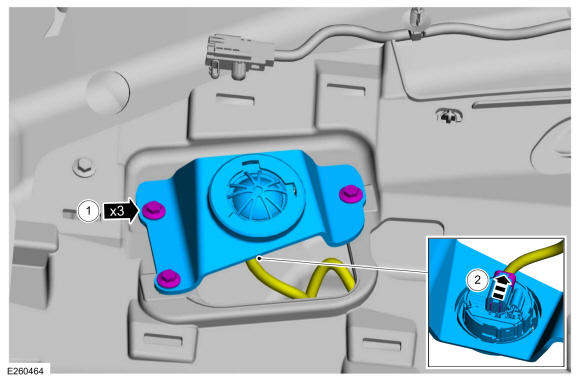

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the driver side instrument panel speaker.
    GFD229661Courtesy of FORD MOTOR COMPANY

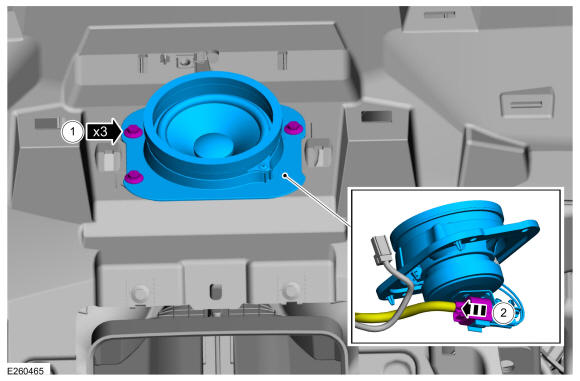

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the instrument panel center speaker.
    GFD229662Courtesy of FORD MOTOR COMPANY

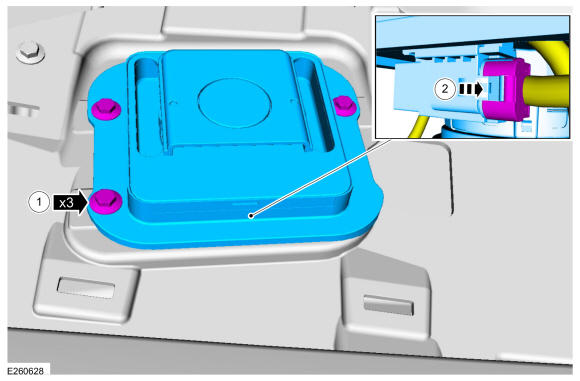

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the passenger side instrument panel speaker.
    GFD229663Courtesy of FORD MOTOR COMPANY

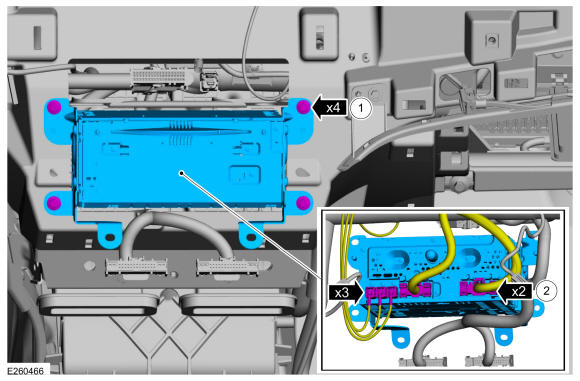

    1. Remove the retainers.

      Torque: 27 lb.in (3 Nm)

    2. Disconnect the electrical connectors and remove the FDIM.
    GFD229664Courtesy of FORD MOTOR COMPANY

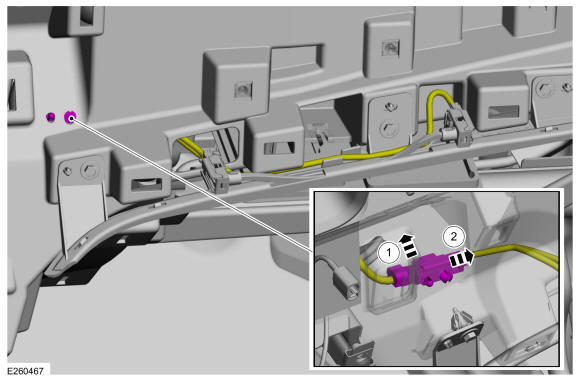

    1. Detach the wiring harness.
    2. Disconnect the electrical connector.
    GFD229665Courtesy of FORD MOTOR COMPANY

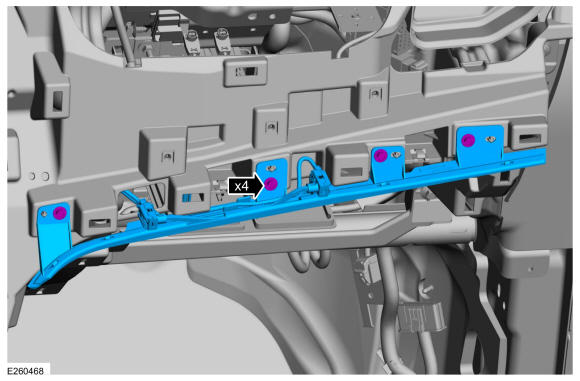

  30. Remove the retainers and the ambient lighting strip.
    GFD229666Courtesy of FORD MOTOR COMPANY

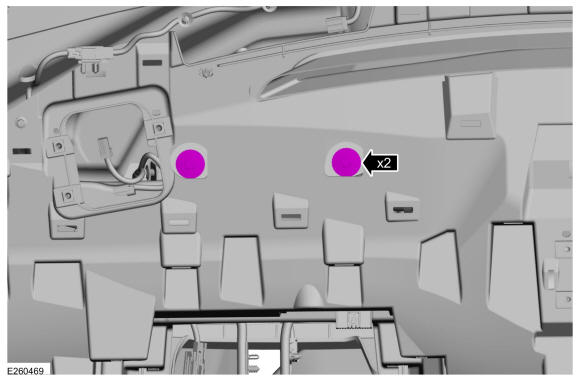

  31. Remove the upper instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD229667Courtesy of FORD MOTOR COMPANY

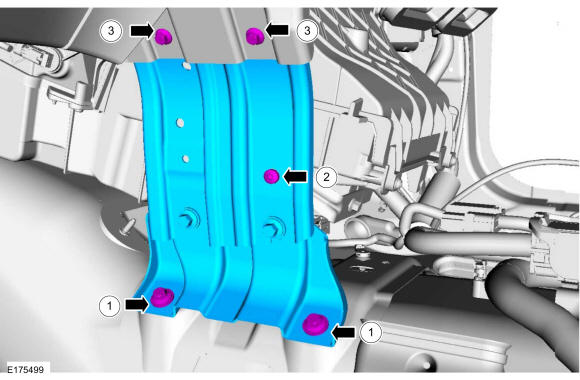

    1. Remove the bolts.

      Torque: 18 lb.ft (25 Nm)

    2. Remove the screw.

      Torque: 27 lb.in (3 Nm)

    3. Remove the bolts and the instrument panel center brace.

      Torque: 89 lb.in (10 Nm)

    GFD229668Courtesy of FORD MOTOR COMPANY

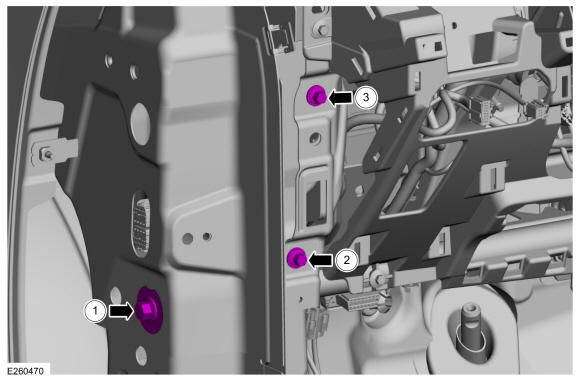

  32. NOTE: Leave the upper instrument panel support bolt finger tight.

    1. Remove the LH A-pillar to in-vehicle cross beam support bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Remove the lower LH instrument panel support bolt.

      Torque: 177 lb.in (20 Nm)

    3. Loosen the upper LH instrument panel support bolt.

    GFD229669Courtesy of FORD MOTOR COMPANY

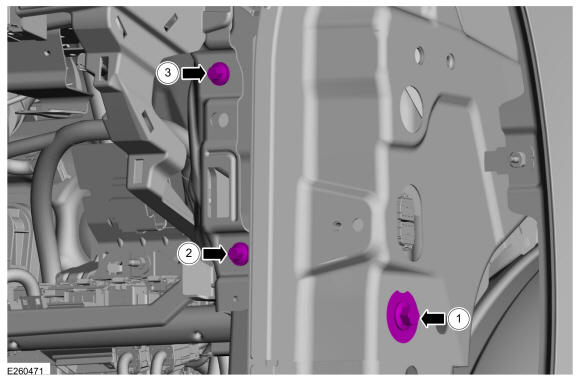

  33. NOTE: Leave the upper instrument panel support bolt finger tight.

    1. Remove the RH A-pillar to in-vehicle cross beam support bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Remove the lower RH instrument panel support bolt.

      Torque: 177 lb.in (20 Nm)

    3. Loosen the upper RH instrument panel support bolt.

    GFD229670Courtesy of FORD MOTOR COMPANY

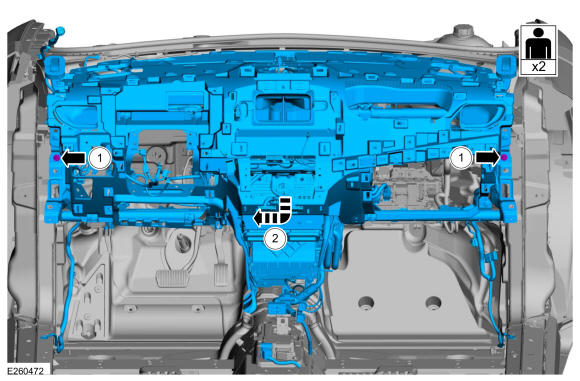

  34. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    1. Remove the upper LH and RH instrument panel support bolts.

      Torque: 177 lb.in (20 Nm)

    2. Rotate the instrument panel face down and remove through the LH front door opening.

    GFD229671Courtesy of FORD MOTOR COMPANY

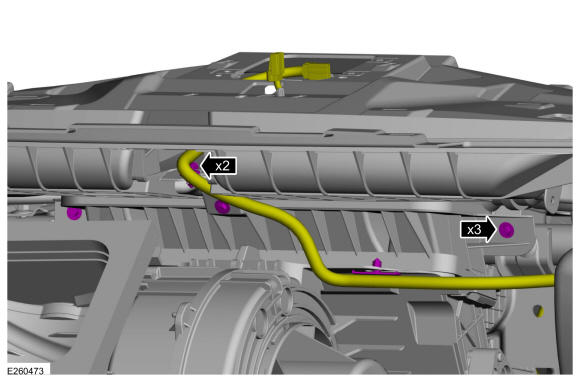

  35. Detach the retainers, position the wiring harness aside and remove the retainers.

    Torque: 27 lb.in (3 Nm)

    GFD229672Courtesy of FORD MOTOR COMPANY

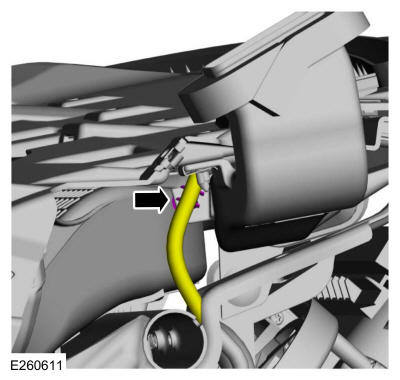

  36. Detach the retainer and position the wiring harness aside.
    GFD229673Courtesy of FORD MOTOR COMPANY

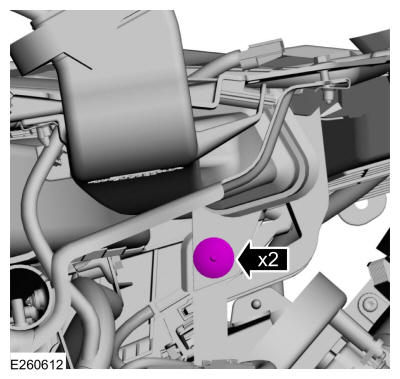

  37. NOTE: RH shown, LH similar.

    Remove both push pin retainers.

    GFD229674Courtesy of FORD MOTOR COMPANY

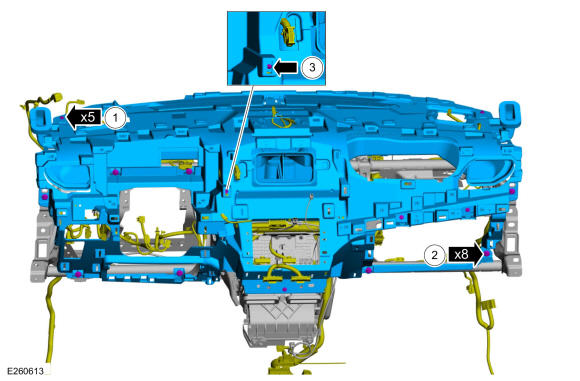

    1. Remove the retainers.

      Torque: 27 lb.in (3 Nm)

    2. Remove the retainers.

      Torque: 27 lb.in (3 Nm)

    3. Detach the wiring harness retainer and remove the instrument panel.
    GFD229675Courtesy of FORD MOTOR COMPANY

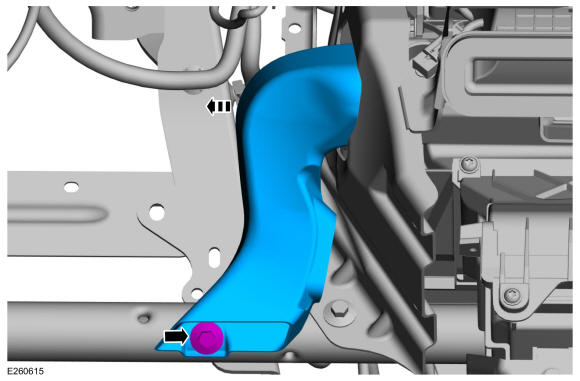

  38. Remove the bolt and the driver side floor duct.

    Torque: 35 lb.in (4 Nm)

    GFD229676Courtesy of FORD MOTOR COMPANY

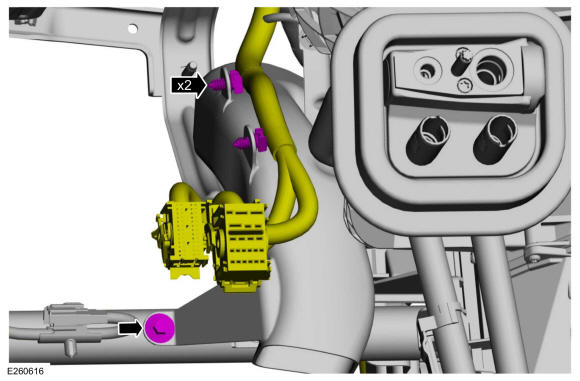

  39. Detach the retainers and remove the bolt.

    Torque: 35 lb.in (4 Nm)

    GFD229677Courtesy of FORD MOTOR COMPANY

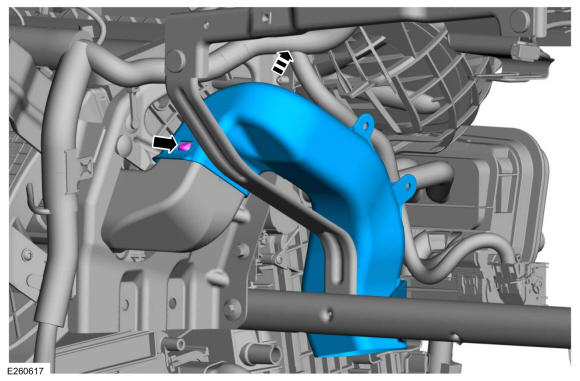

  40. Remove the passenger side floor duct.
    GFD229678Courtesy of FORD MOTOR COMPANY

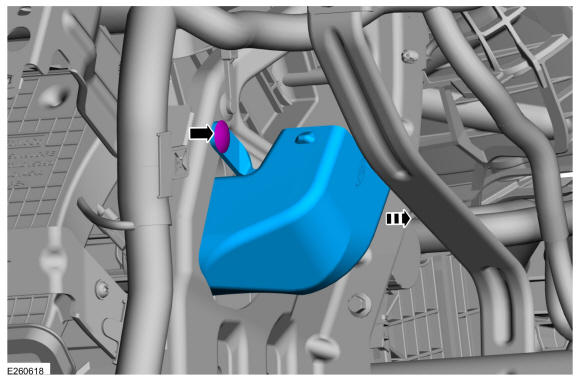

  41. Remove the push pin retainer and the duct.
    GFD229679Courtesy of FORD MOTOR COMPANY

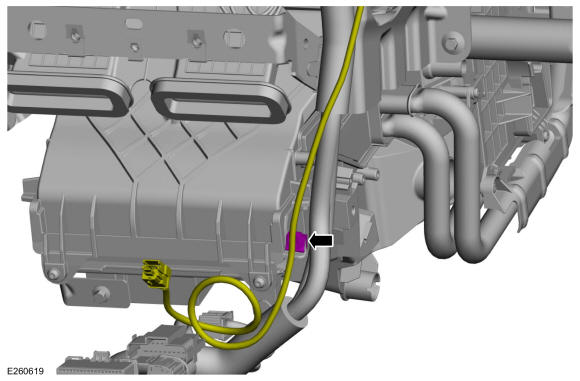

  42. Detach the clip and position the USB wiring harness aside.
    GFD229680Courtesy of FORD MOTOR COMPANY

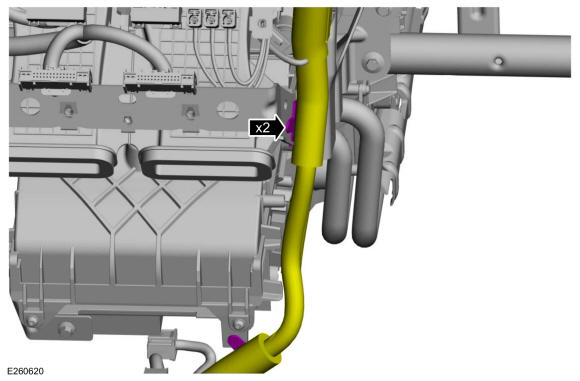

  43. Detach the retainers and position the instrument panel wiring harness aside.
    GFD229681Courtesy of FORD MOTOR COMPANY

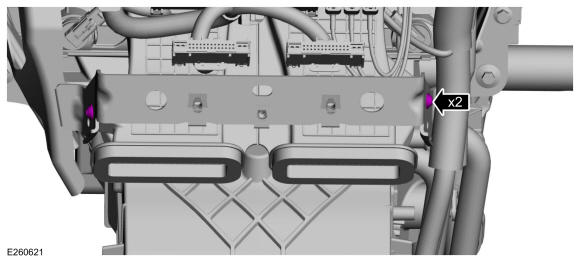

  44. Remove the retainers.
    GFD229682Courtesy of FORD MOTOR COMPANY

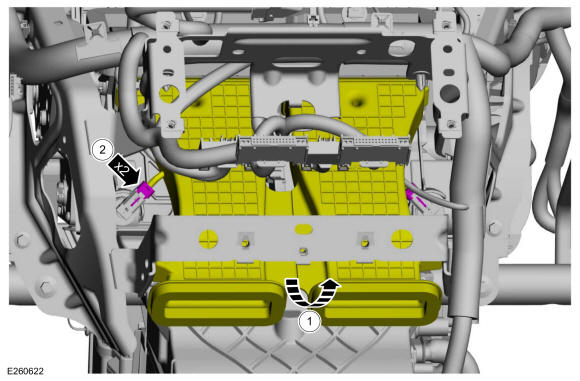

    1. Position the duct aside.
    2. Disconnect the electrical connectors.
    GFD229683Courtesy of FORD MOTOR COMPANY

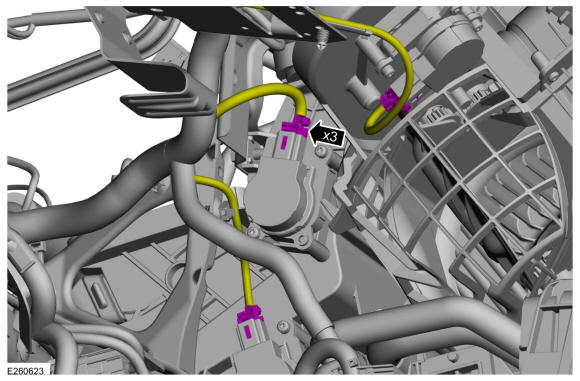

  45. Disconnect the electrical connectors.
    GFD229684Courtesy of FORD MOTOR COMPANY

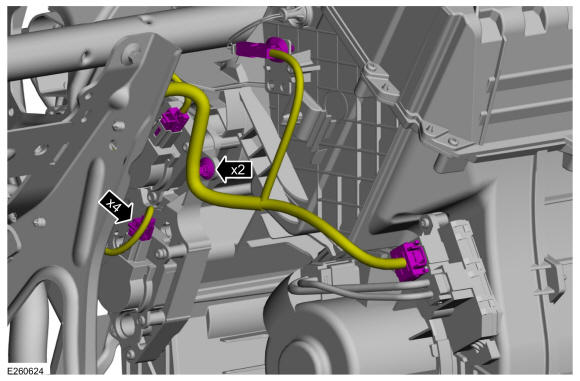

  46. Disconnect the electrical connectors, detach the wiring harness retainer and position the wiring harness aside.
    GFD229685Courtesy of FORD MOTOR COMPANY

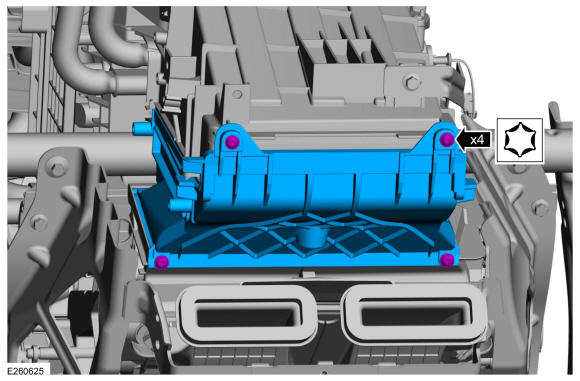

  47. Remove the retainers and the air plenum bezel.
    GFD229686Courtesy of FORD MOTOR COMPANY

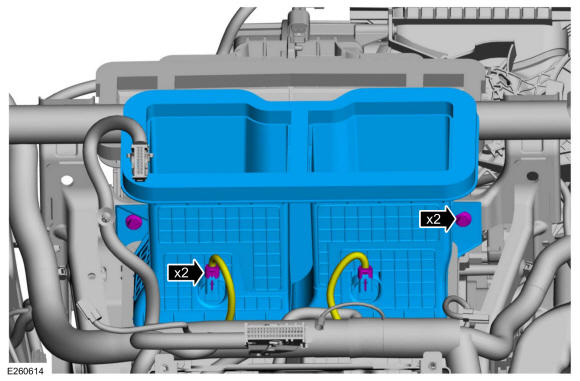

  48. Disconnect the electrical connectors, remove the retainers and the center register duct.

    Torque: 53 lb.in (6 Nm)

    GFD229687Courtesy of FORD MOTOR COMPANY

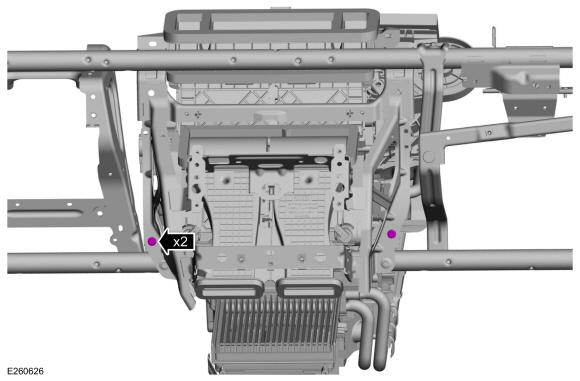

  49. Remove the climate control housing bolts.

    Torque: 53 lb.in (6 Nm)

    GFD229688Courtesy of FORD MOTOR COMPANY

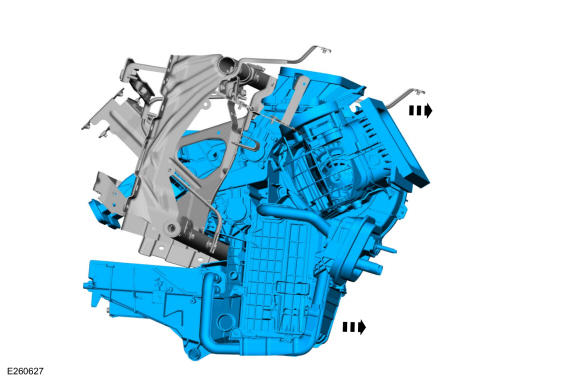

  50. Remove the climate control housing.
    GFD229689Courtesy of FORD MOTOR COMPANY
