Center Register Air Discharge Temperature Sensor: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the HVAC control module. Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module .

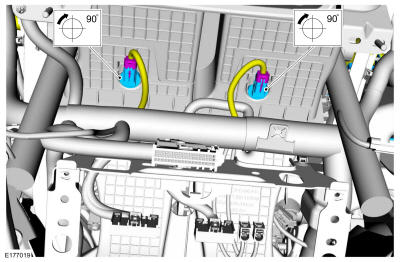

- Disconnect the electrical connectors and remove the center register air discharge temperature sensors. Loosen:: 90 °
