Cabin Heater Coolant Pump: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Release the cooling system pressure by slowly turning the degas bottle cap between 2 and 3 turns and remove the degas bottle cap.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

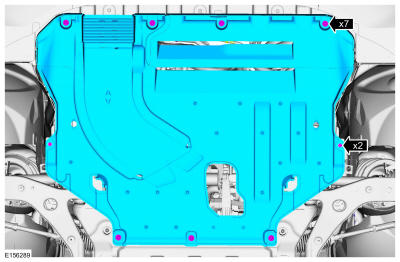

- Remove the retainers and the underbody shield.

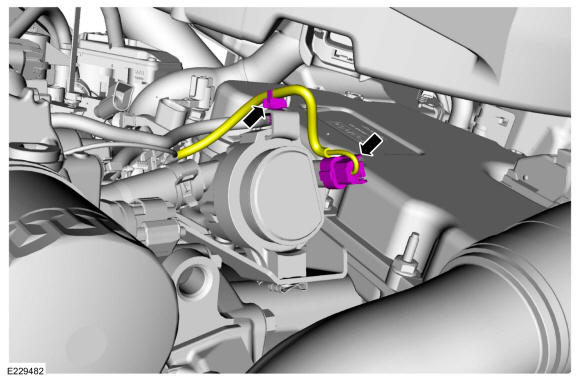

- Disconnect the cabin heater coolant pump electrical connector, detach the wiring harness retainer and position aside the wiring harness.
-
NOTE: Be prepared to collect escaping fluid.

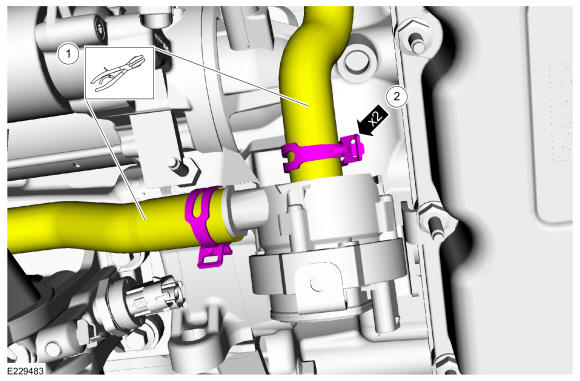

- Install the hose clamping pliers on the heater hoses. Use the General Equipment: Hose Clamp(s)
- Release the clamps, disconnect the heater inlet and outlet hoses.

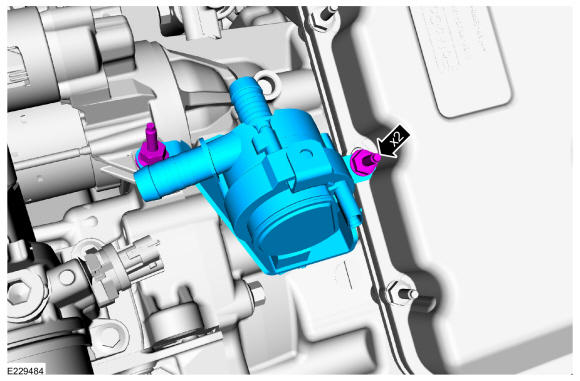

- Remove the studbolts and the cabin heater coolant pump.
Torque: 89 lb.in (10 Nm)
