Blower Motor Speed Control: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accelerator pedal. Refer to: Accelerator Pedal .

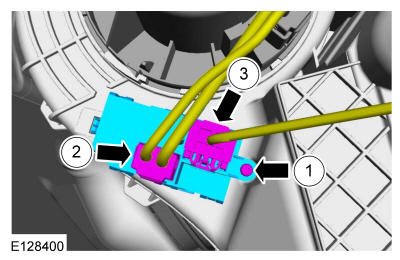

    1. Remove the retainer.
    2. Disconnect the electrical connector.
    3. Disconnect the electrical connector and remove the blower motor speed control.
    GFD229628Courtesy of FORD MOTOR COMPANY
