Air Inlet Duct: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the BCM. Refer to: Body Control Module (BCM) .

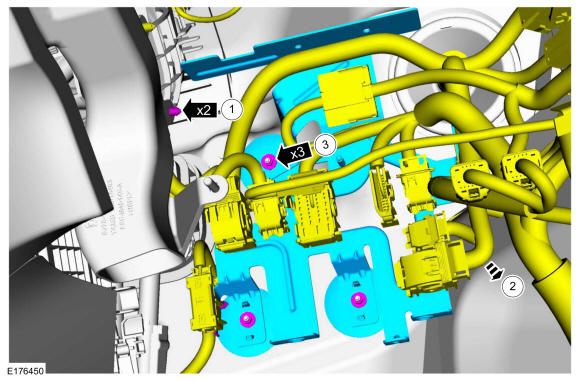

1. Detach the wiring harness retainers.
2. Position aside the wiring harness.
3. Remove the nuts and the BCM bracket.
Courtesy of FORD MOTOR COMPANY

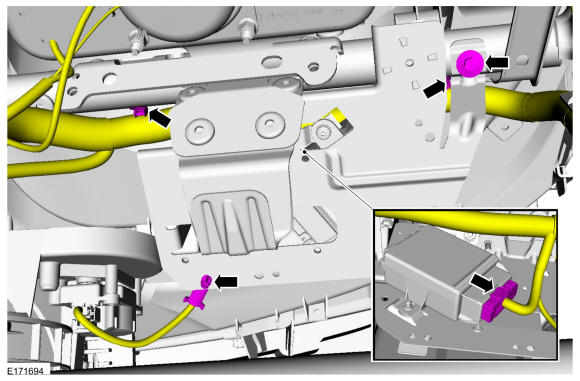

Detach the wiring harness retainers, remove the bolt and disconnect the electrical connector.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

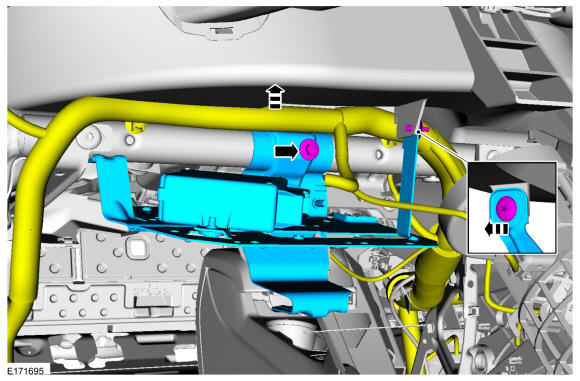

Detach the wiring harness retainer, remove the bolt and the bracket.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

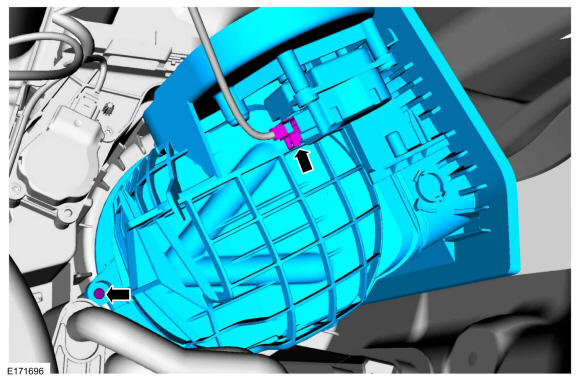

Disconnect the air inlet door actuator electrical connector and remove the front air inlet duct retainer.

Courtesy of FORD MOTOR COMPANY

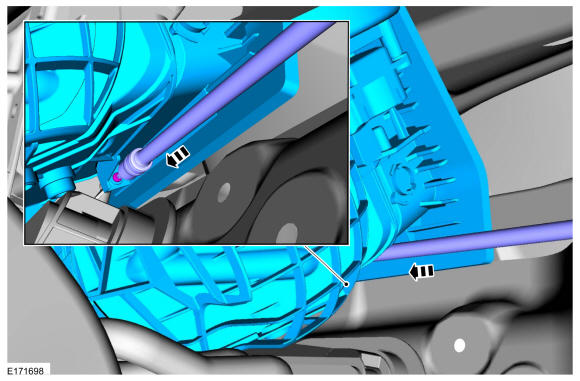

Install the ratchet, extension and socket as shown. Remove the upper air inlet duct retainer.

Courtesy of FORD MOTOR COMPANY

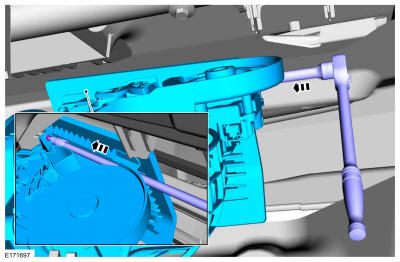

Install the ratchet, extension and socket as shown. Remove the lower air inlet duct retainer and the air inlet duct.

Courtesy of FORD MOTOR COMPANY
