Air Conditioning (A/C) Pressure Transducer: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the retainers and the underbody shield.

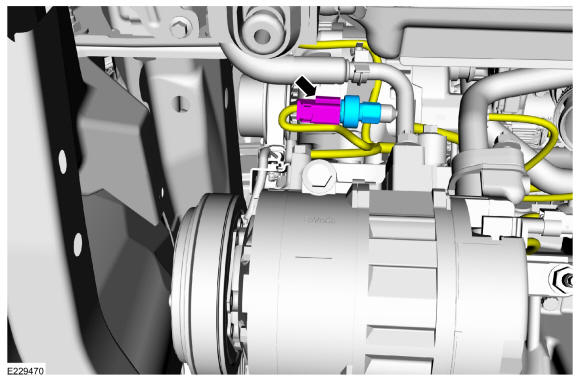

- Disconnect the electrical connector and remove the A/C pressure transducer.
Torque: 71 lb.in (8 Nm)
