Air Conditioning (A/C) Compressor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: If installing a new A/C compressor due to an internal failure of the old unit, carry out the following procedures to remove contamination from the A/C system. Failure to remove contamination from the A/C system, if present, will result in poor A/C performance and/or damage to the new A/C compressor and other components.

If A/C flushing equipment is available, carry out flushing of the A/C system prior to installing a new A/C compressor.
If A/C flushing equipment is not available, replace all contaminated components after a new A/C compressor has been installed.
Install a new Thermostatic Expansion Valve (TXV) as directed by the A/C flushing.
Install a new receiver drier element as directed by the A/C flushing.

NOTE: Installation of a new receiver drier element is not required when repairing the A/C system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the receiver drier element.

NOTE: A new A/C compressor may come equipped with an A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil already installed. If these components are not pre-installed, it will be necessary to transfer these parts from the old A/C compressor to the new compressor prior to installation of the A/C compressor if suitable for reuse.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt 2.0L EcoBoost (177kW/240PS) - MI4 . Refer to: Air Conditioning (A/C) Compressor Belt 2.3L EcoBoost (201kW/273PS) .
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

Loosen the clamps and remove the CAC outlet pipe.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

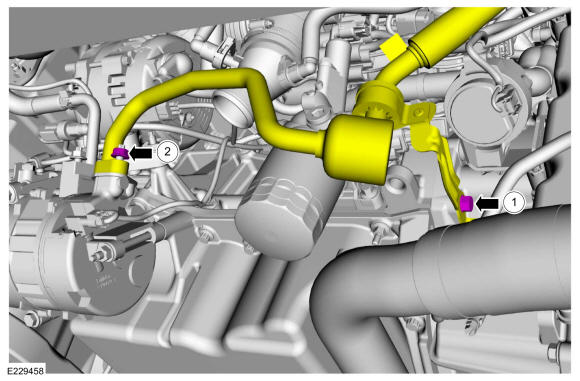

1. Remove the bolt and position aside the bracket.
  Torque: 177 lb.in (20 Nm)
2. Remove the A/C inlet line nut and disconnect the fitting.
  Torque: 133 lb.in (15 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY

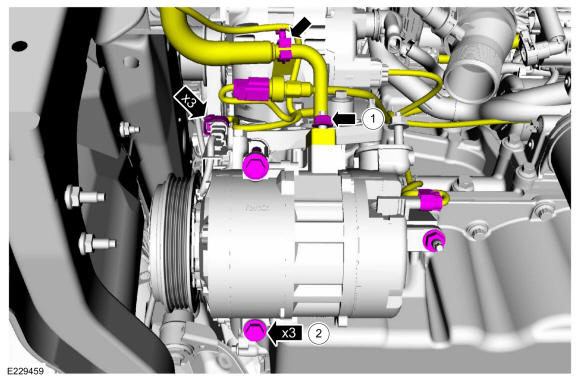

1. Disconnect the electrical connectors, detach the wiring harness retainer and remove the A/C outlet line nut and disconnect the fitting.
  Torque: 133 lb.in (15 Nm)
2. Remove the A/C compressor bolts and the nut.
  Torque: 18 lb.ft (25 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY

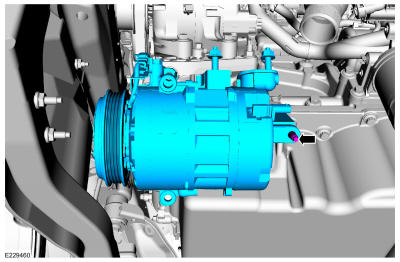

Remove the stud and the A/C compressor.

Courtesy of FORD MOTOR COMPANY
