Air Conditioning (A/C) Compressor Outlet Line: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the retainers and the underbody shield.
- Loosen the clamps and remove the CAC outlet pipe.
Torque: 44 lb.in (5 Nm)
-
NOTE: Make sure that all opening are sealed.
Disconnect the A/C pressure transducer electrical connector, detach the wiring harness retainer and remove the A/C outlet line nut and disconnect the fitting.
Torque: 133 lb.in (15 Nm)
-
NOTE: Make sure that all opening are sealed.

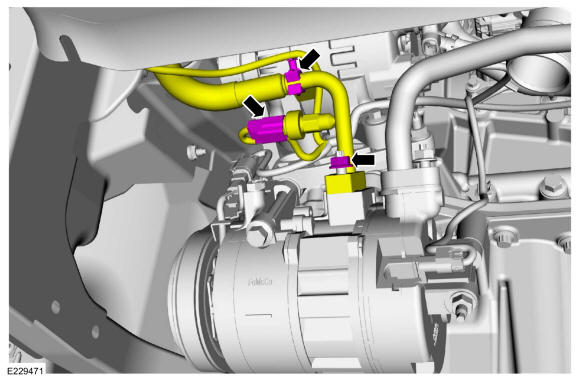

Remove the A/C compressor outlet line bolt, disconnect the fitting and remove the A/C compressor outlet line.
Torque: 133 lb.in (15 Nm)
