Air Conditioning (A/C) Compressor Inlet Line: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

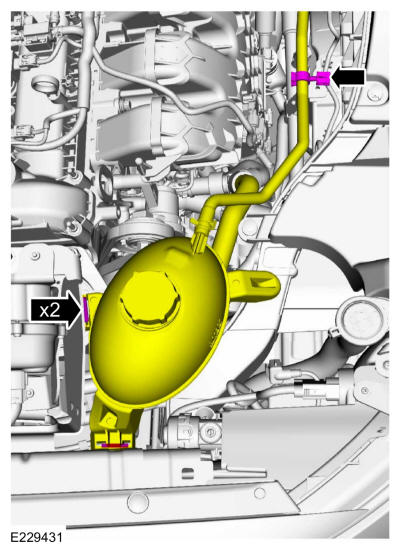

Release the degas bottle tabs and the coolant tube retainer, position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

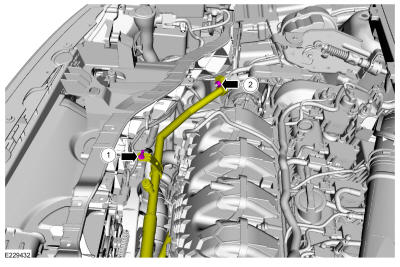

1. Remove the A/C compressor inlet line bracket studbolt.
  Torque: 89 lb.in (10 Nm)
2. Remove the A/C compressor inlet line nut and disconnect the fitting.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

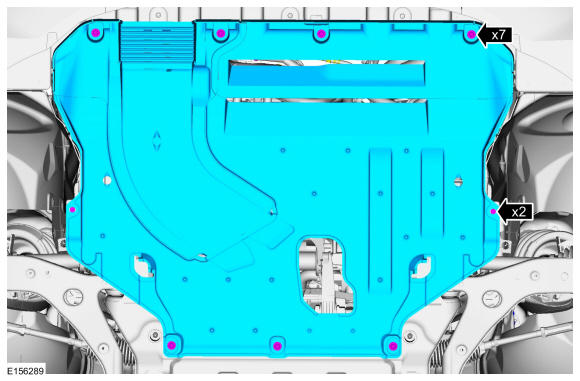

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

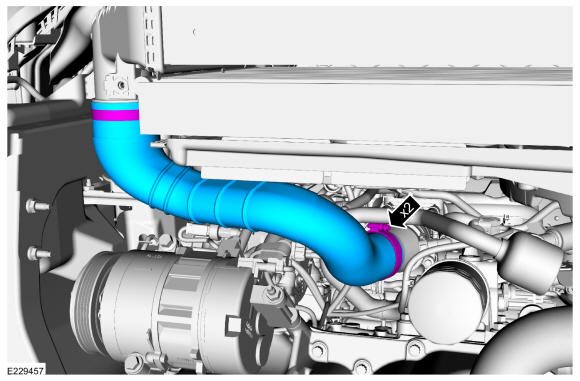

Loosen the clamps and remove the CAC outlet pipe.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

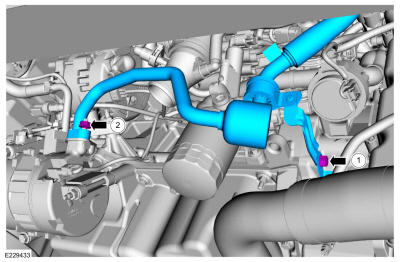

1. Remove the A/C compressor inlet line bracket bolt.
  Torque: 177 lb.in (20 Nm)
2. Remove the A/C compressor inlet line nut, disconnect the fitting and remove the A/C compressor inlet line.
  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
