Air Conditioning (A/C) Clutch Air Gap Adjustment
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Activation
-
NOTE: Compressor with a spring rubber clutch shown others similar.

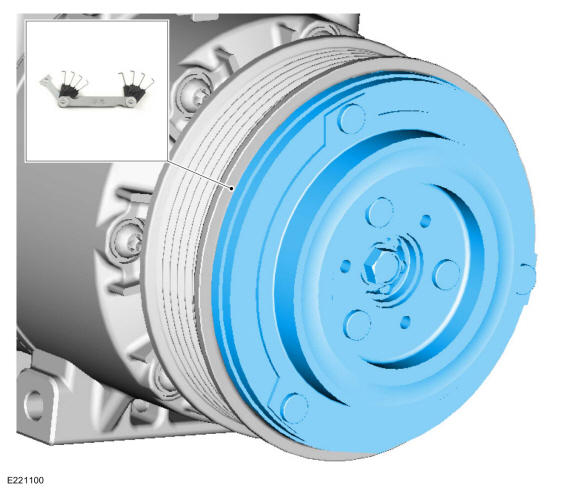

Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley. Refer to A/C Compressor Clutch Air Gap .
- Remove the A/C clutch. Refer to Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil .
-
NOTE: For some vehicles a shim kit may only be available with the A/C clutch assembly.
Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification. Refer to Specifications .
Torque: 159 lb.in (18 Nm)
