Rear Seat Cushion Cover: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .

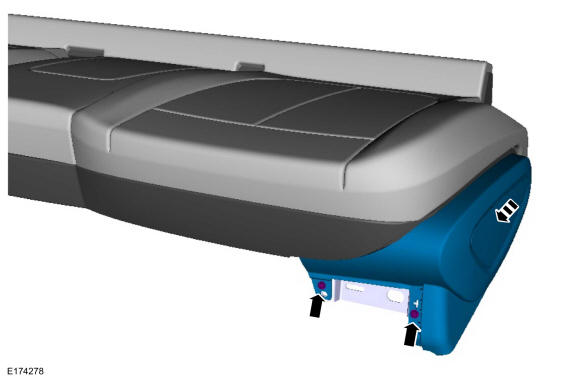

- On both sides, remove the 2 retainers attaching the seat side trim cover finish panel to the seat cushion frame. Slide the finish panel trim cover forward and remove.

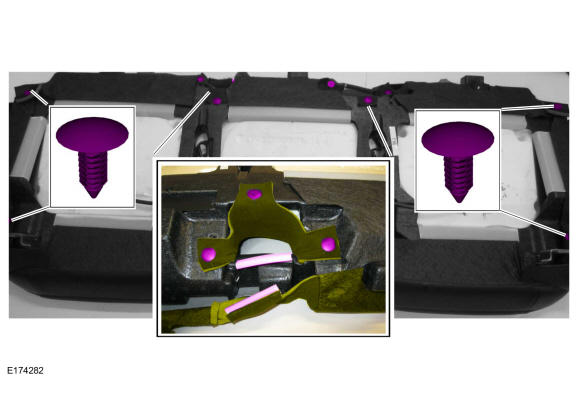

- Remove the 10 rear seat cushion trim cover pin-type retainers and release the 2 J-clips.
- Release the seat cushion trim cover J-clips from the seat cushion frame.

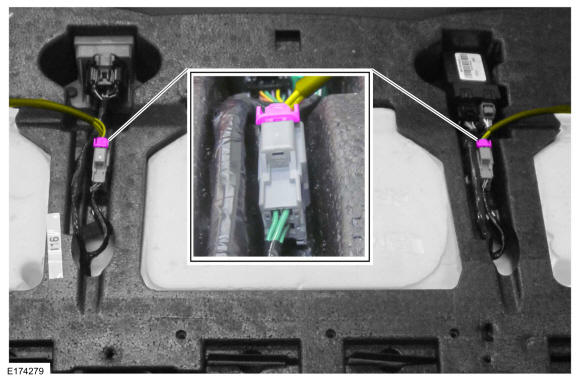

- If equipped with heated seats, disconnect the 2 electrical connectors.
-

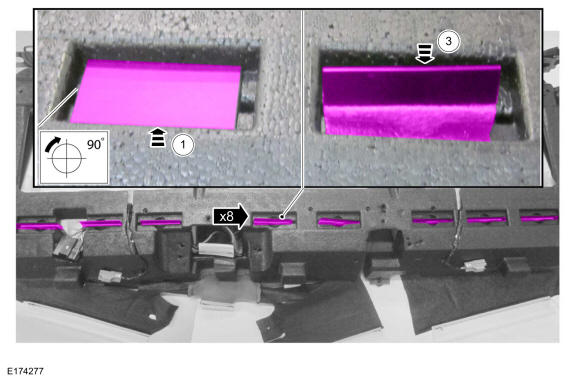

- Lift and rotate the seat cushion trim cover tabs to a straight-up position.

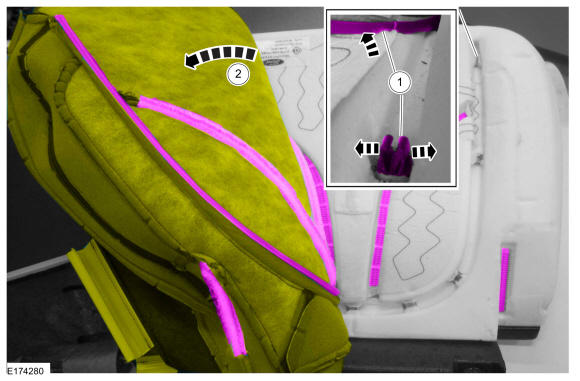

- Route the seat cushion trim cover tabs through the seat cushion frame.
-
NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.NOTE: Use care when separating the seat cushion trim cover from the hook-and-arrow strips or the arrow may be torn from the seat cushion foam pad.

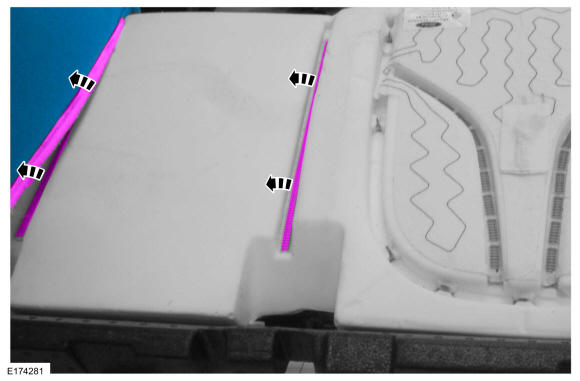

On both sides, separate the hook and loop and hook and arrows strips.
-
NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

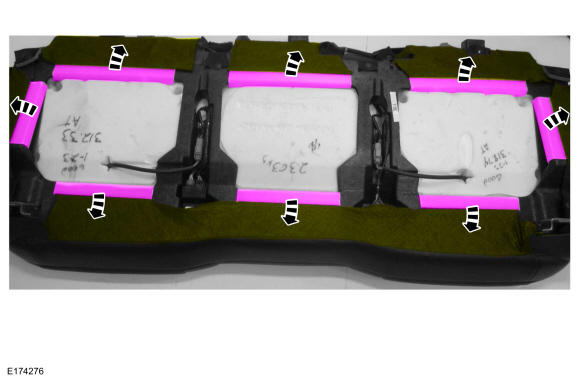

Separate the remaining hook and loop strips and remove the rear seat cushion trim cover.
