Rear Seat Armrest: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

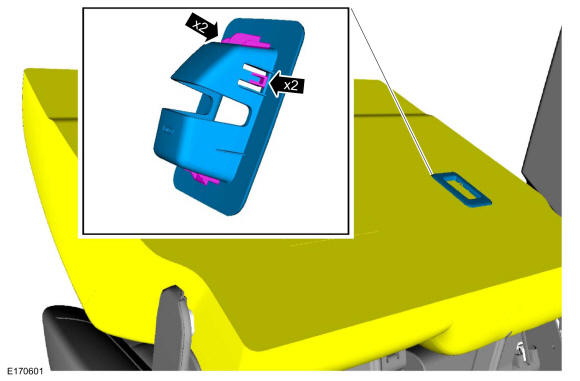

- Remove the inboard child safety seat tether anchor bezel.

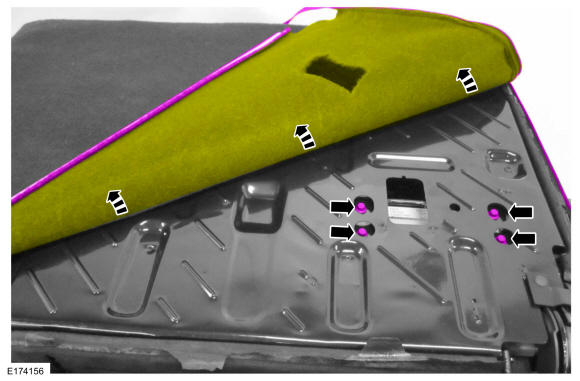

- Release the seat backrest lower J-clip. Unzip the inboard seat backrest cover and remove the 4 armrest bolts.
Torque: 80 lb.in (9.0 Nm)

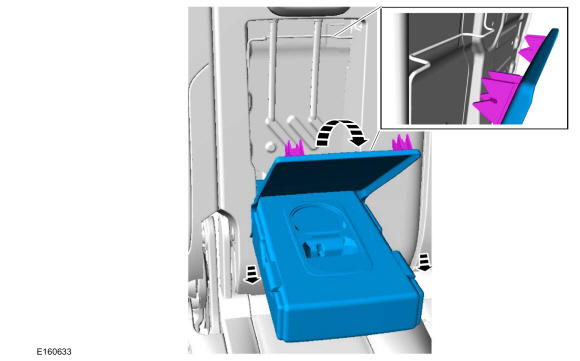

- Position the armrest to access the armrest back panel, release the armrest locking clips from the seat backrest frame and remove the armrest.
