Heated Rear Seat Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

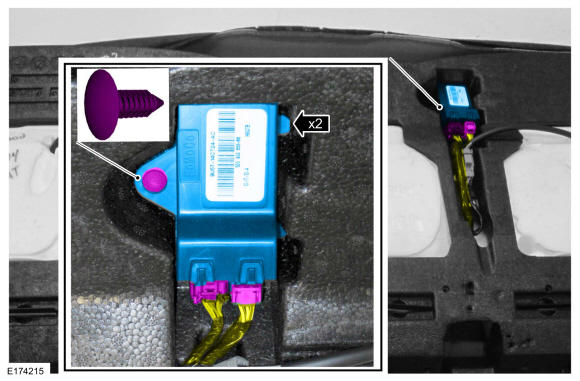

  2. Disconnect the 2 electrical connectors. Remove the pin-type retainer and the heated rear seat module.
GFD230281Courtesy of FORD MOTOR COMPANY
