Fuel Tank: Removal

LHD AWD/LHD FWD

1. multimedia:A supplement to the article is available.
2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. NOTE: Make certain the fuel tank is completely empty before removing the fuel tank.

   Drain the fuel tank. Refer to: Fuel Tank Draining .

5. If equipped, remove the retainers and the underbody shields.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Discard the specified component. Follow local disposal regulations.

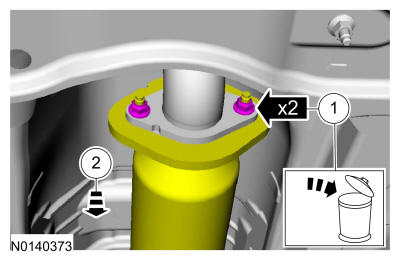

   Remove and discard the nuts, position aside the exhaust.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

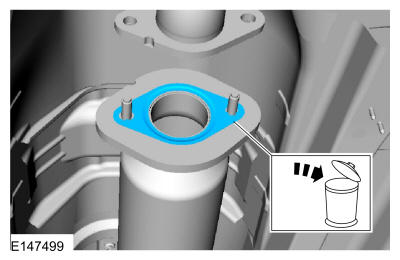

7. Remove and discard the gasket.

   Courtesy of FORD MOTOR COMPANY

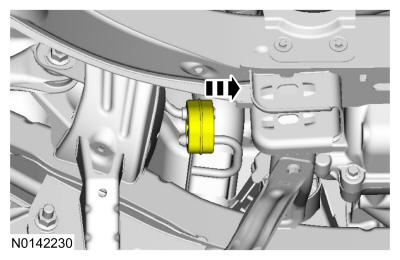

8. Detach the exhaust isolator.

   Courtesy of FORD MOTOR COMPANY

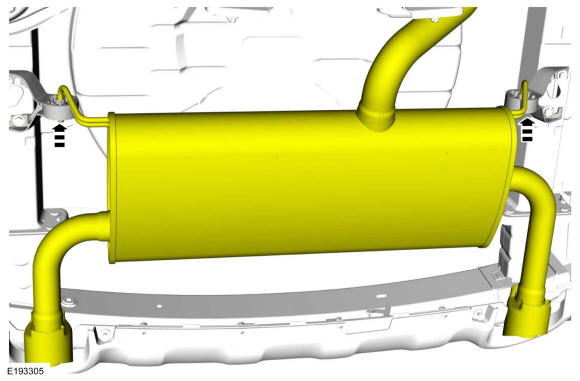

9. Detach the exhaust from the isolators and position aside.

   Courtesy of FORD MOTOR COMPANY

10. If equipped, remove the bolts and the bracket.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

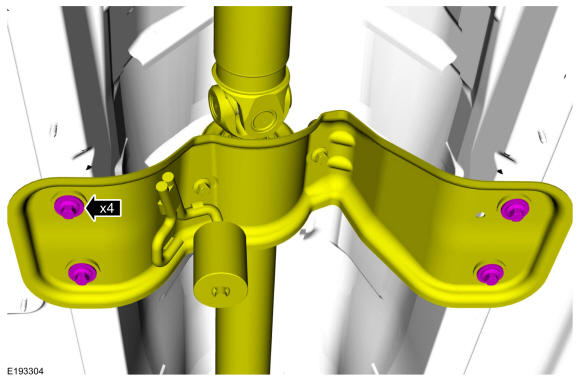

11. If equipped. Remove the bolts from the center bearing support.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Remove and discard the Rear Drive Unit (RDU) pinion flange bolt and washer assemblies.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

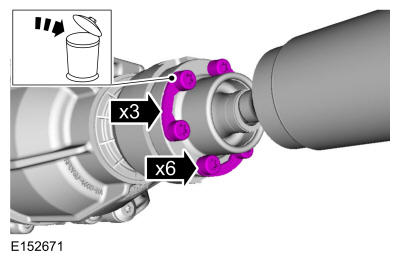

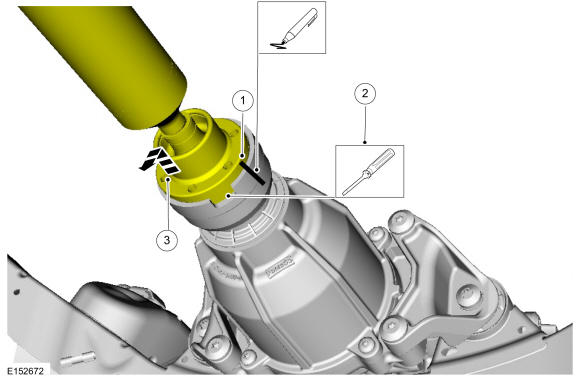

13. 1. Index mark the rear driveshaft flange.
    2. Separate the driveshaft CV flange from the RDU flange using a flat-blade.
    3. NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV joint can result.

       Position the rear of the driveshaft aside and support with mechanics wire.

    Courtesy of FORD MOTOR COMPANY

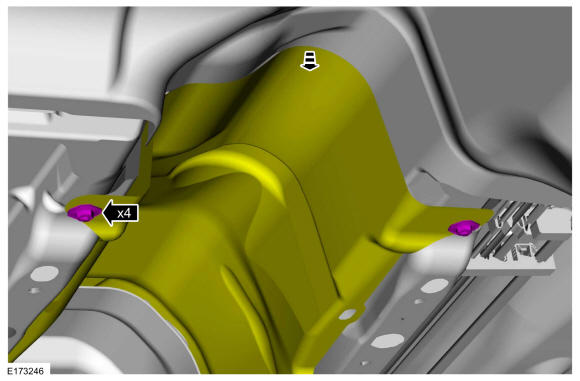

14. Remove the nuts and position the heat shield aside.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

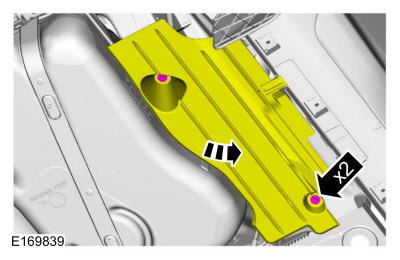

15. Remove the retainers and position the RH splash shield aside.

    Courtesy of FORD MOTOR COMPANY

    NOTE: It may be necessary to position the exhaust downward to allow enough clearance for the shield to be removed.

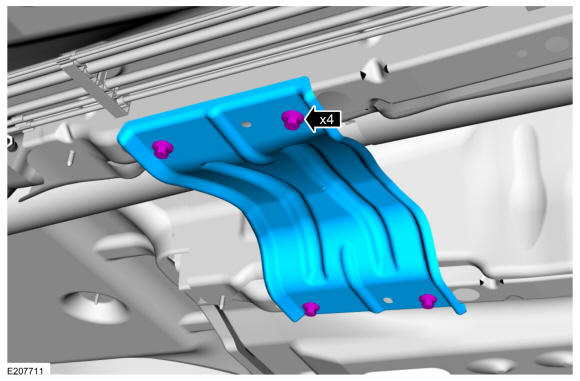

16. With the help of an assistant, remove the nuts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

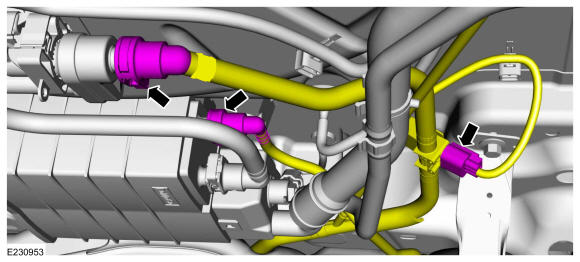

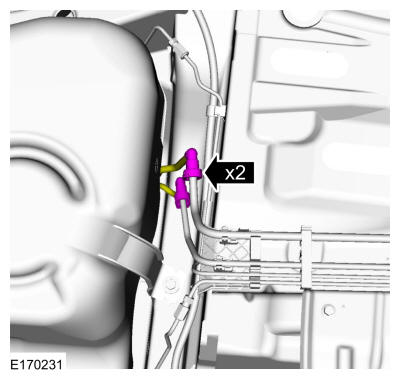

17. Disconnect the quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

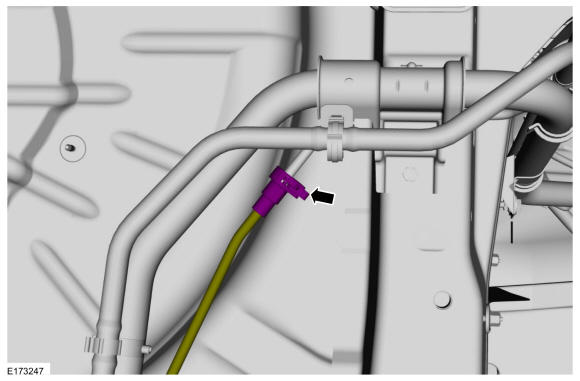

18. Disconnect the quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

19. Disconnect the electrical connector and the quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

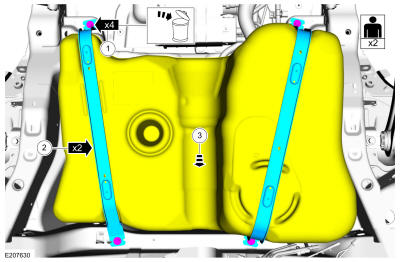

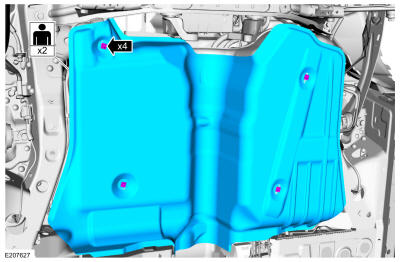

20. • Support the fuel tank and remove and discard the bolts.

      Torque: 18 lb.ft (25 Nm)

    • Remove the straps.
    • Partially lower the fuel tank.

    Courtesy of FORD MOTOR COMPANY

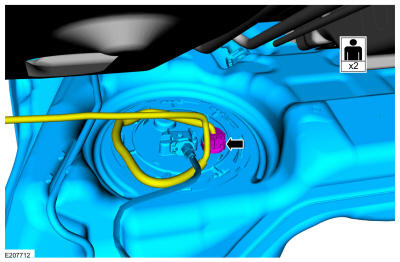

21. With the help of an assistant, disconnect the electrical connector and remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
