Steering Wheel Rotation Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clockspring. Refer to: Clockspring .

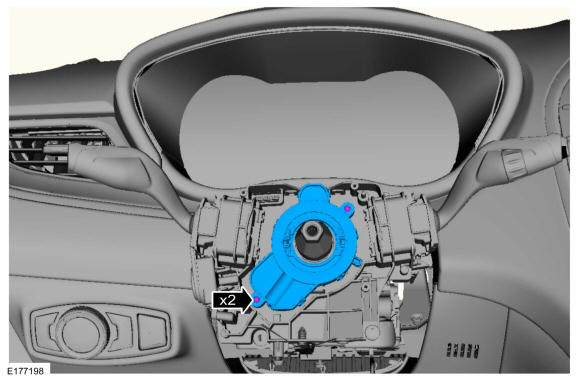

  2. Remove the 2 screws and the steering wheel rotation sensor.
GFD227381Courtesy of FORD MOTOR COMPANY
