Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the driver airbag. Refer to: Driver Airbag .

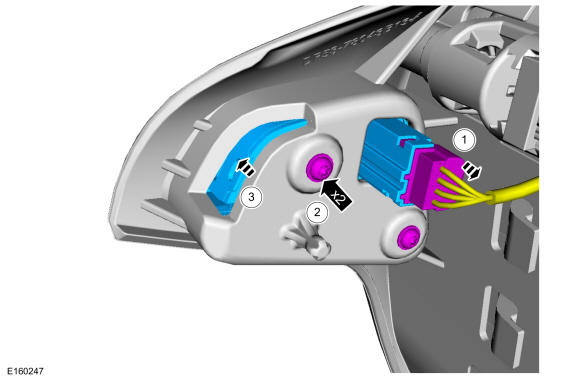

Upper steering wheel switch
1. Disconnect the electrical connector.
2. Remove the retainers.
  Torque: 27 lb.in (3 Nm)
3. Remove the upper steering wheel multifunction switch.
Courtesy of FORD MOTOR COMPANY

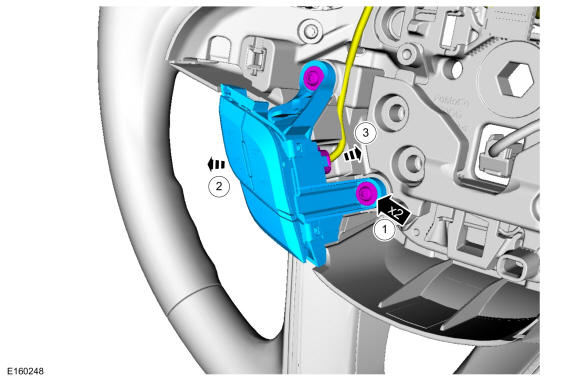

Lower steering wheel switch
1. Remove the retainers.
  Torque: 27 lb.in (3 Nm)
2. Remove the lower steering wheel multifunction switch.
3. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
