Steering Column Multifunction Switch RH: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. NOTE: The steering wheel is removed for clarity.
    NOTE: Make sure the component terminals are not bent or damaged.

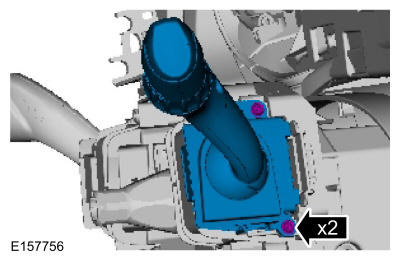

    Remove the retainers and the RH steering column multifunction switch.

GFD227378Courtesy of FORD MOTOR COMPANY
