Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

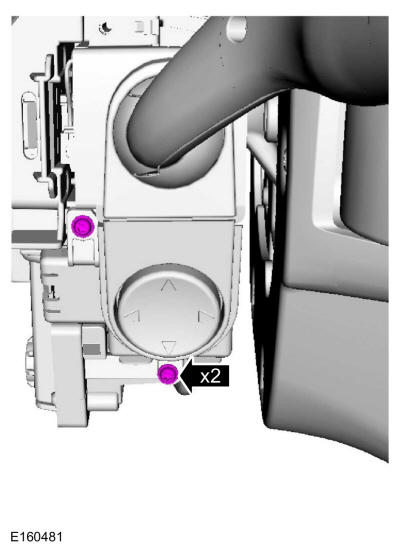

  2. Remove the screws.

    Torque: 27 lb.in (3 Nm)

    GFD227375Courtesy of FORD MOTOR COMPANY

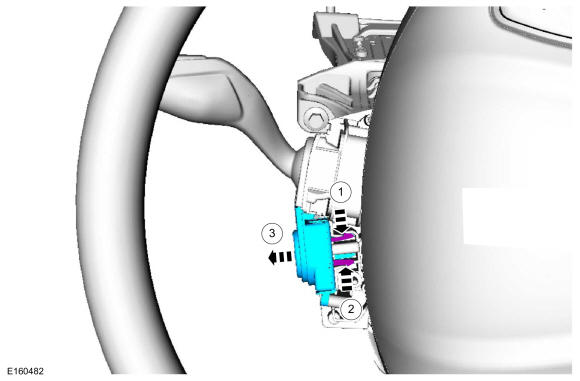

  3. Squeeze the tabs and remove the steering column control switch.
GFD227376Courtesy of FORD MOTOR COMPANY
