Heated Steering Wheel Module (HSWM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Instrument Panel Lower Trim Panel .

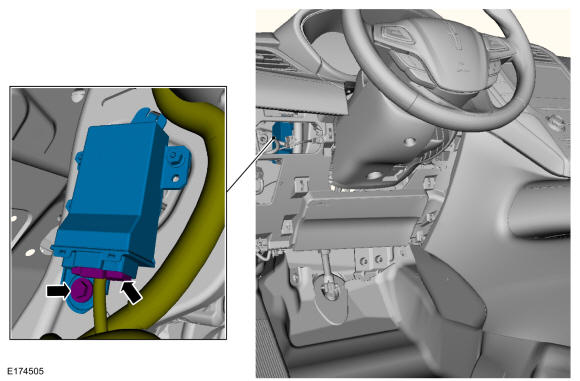

  2. Torque: 80 lb.in (9 Nm)
    GFD227371Courtesy of FORD MOTOR COMPANY

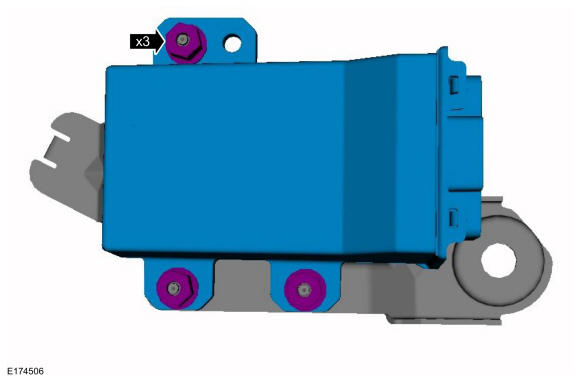

  3. Torque: 22 lb.in (2.5 Nm)
GFD227372Courtesy of FORD MOTOR COMPANY
