Steering Column: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Steering Wheel .
Refer to: Steering Column Shrouds .

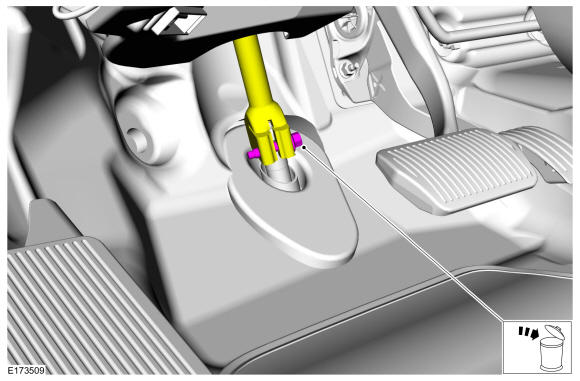

WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Refer to: Instrument Panel Lower Trim Panel .
NOTE: Power adjustable steering column shown, manual adjustable steering column similar.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Refer to: Steering Column Control Module (SCCM) .

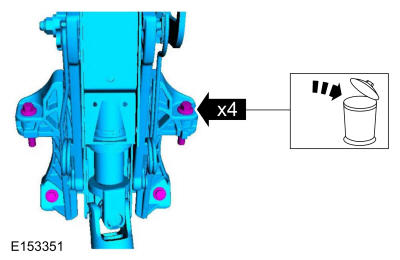

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
