Steering Column Tilt Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Steering Column Shrouds .
  2. Refer to: Instrument Panel Lower Trim Panel .

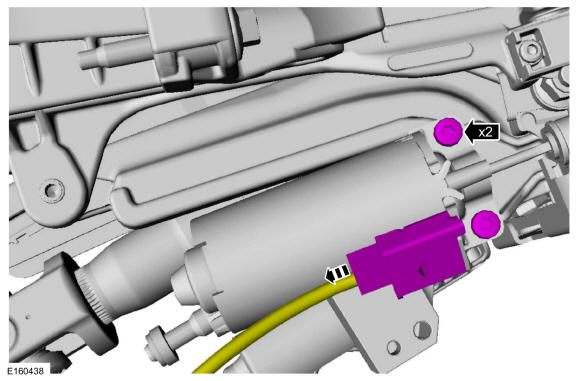

  3. Torque: 27 lb.in (3 Nm)
    GFD227363Courtesy of FORD MOTOR COMPANY

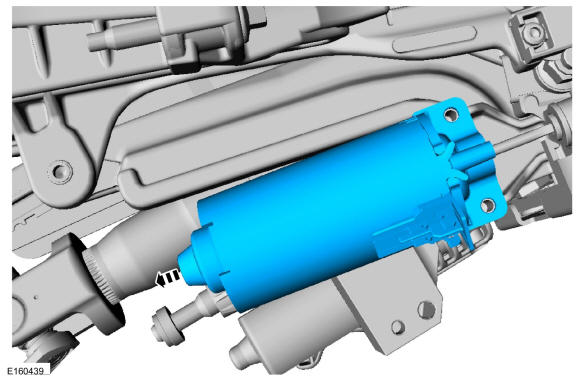

  4. GFD227364Courtesy of FORD MOTOR COMPANY
