Rear Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown, LH side similar.
  1. Remove the rear door window regulator and motor. Refer to: Rear Door Window Regulator and Motor .

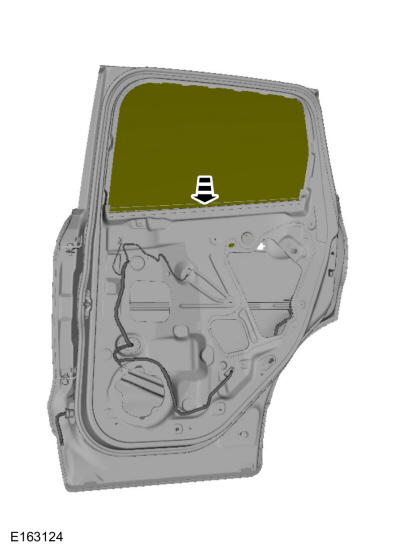

  2. Remove the tape and lower the rear door window glass to the full down position.
    GFD230343Courtesy of FORD MOTOR COMPANY

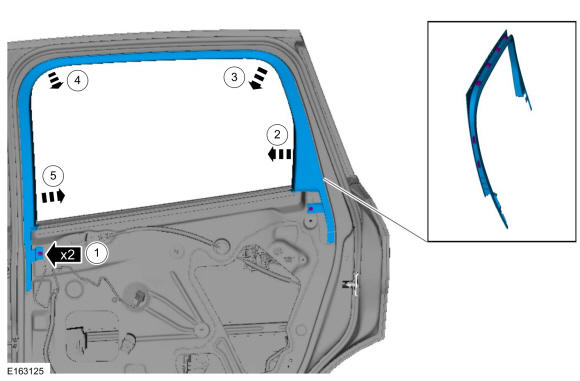

  3. Remove the rear door window inner trim.

    1. Remove the push pins.
    2. Release the rear door window inner trim clips.
    3. Release the rear door window inner trim clips.
    4. Release the rear door window inner trim clips.
    5. Release the rear door window inner trim clips and remove the rear door window inner trim.

    GFD230344Courtesy of FORD MOTOR COMPANY
  4. Remove the rear door window glass weatherstrip. Refer to: Rear Door Window Glass Weatherstrip .

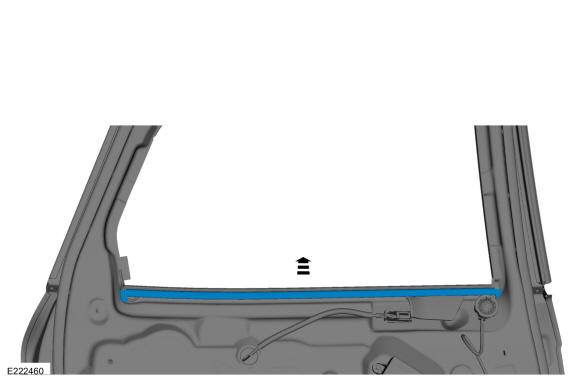

  5. Remove the rear door window glass.
    GFD230345Courtesy of FORD MOTOR COMPANY

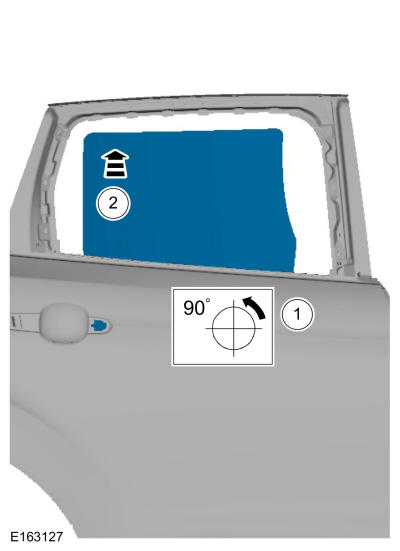

  6. Remove the rear door window glass.

    1. Rotate the rear door window glass 90 degrees counter-clockwise.
    2. Remove the rear door window glass.

GFD230346Courtesy of FORD MOTOR COMPANY
