Rear Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

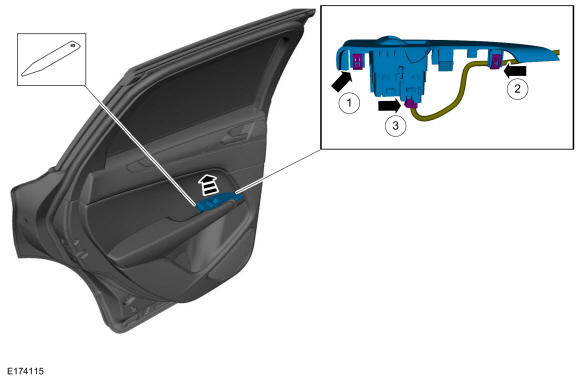

  1. Remove the rear door window control switch.

    1. Using the interior trim remover, release the rear door window control switch rear retaining clip. Use the General Equipment: Interior Trim Remover
    2. Using the interior trim remover, release the rear door window control switch front retaining clip. Use the General Equipment: Interior Trim Remover
    3. Disconnect the electrical connector and remove the rear door window control switch.

    GFD230360Courtesy of FORD MOTOR COMPANY

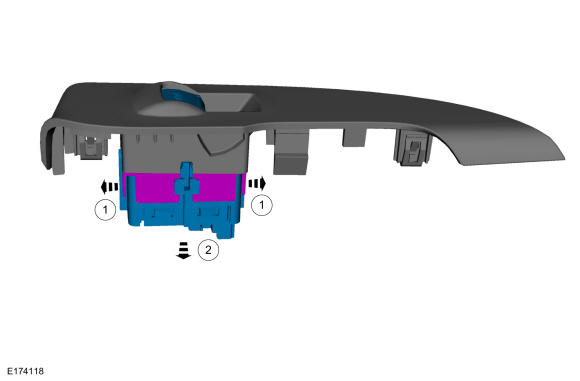

  2. NOTE: This step is only necessary when installing a new component.

    Remove the rear door window control switch from the bezel.

    1. Release the rear door window control switch rear retaining tabs.
    2. Remove the rear door window control switch from the bezel.

GFD230361Courtesy of FORD MOTOR COMPANY
