Rear Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the rear door window glass. Refer to: Rear Door Window Glass .
  2. Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .

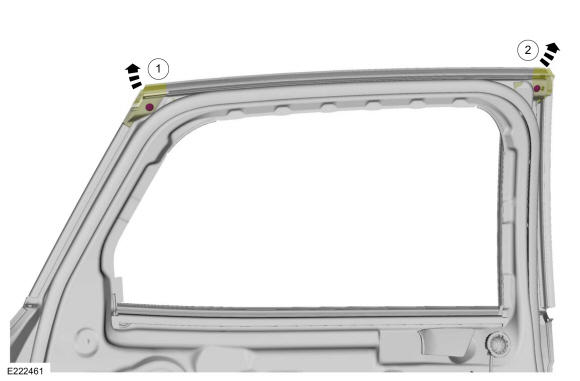

  3. Remove the retainers from the rear door glass top run.

    1. Position aside the access flap and remove the retainer from the rear door glass top run.
    2. Position aside the access flap and remove the retainer from the rear door glass top run.

    GFD230341Courtesy of FORD MOTOR COMPANY

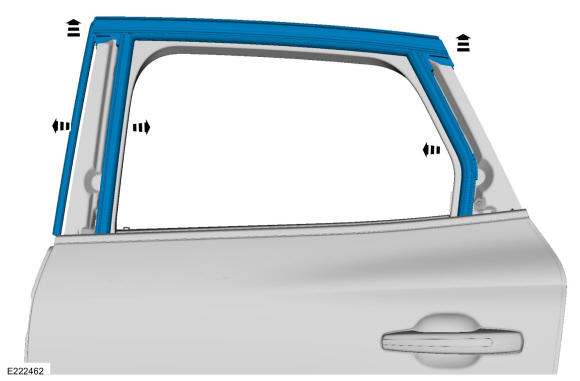

  4. Remove the rear door glass top run.
GFD230342Courtesy of FORD MOTOR COMPANY
