Rear Door Glass Run and Bracket: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
- Remove the rear door latch. Refer to: Rear Door Latch .
-
NOTE: This step is only necessary when installing a new component.

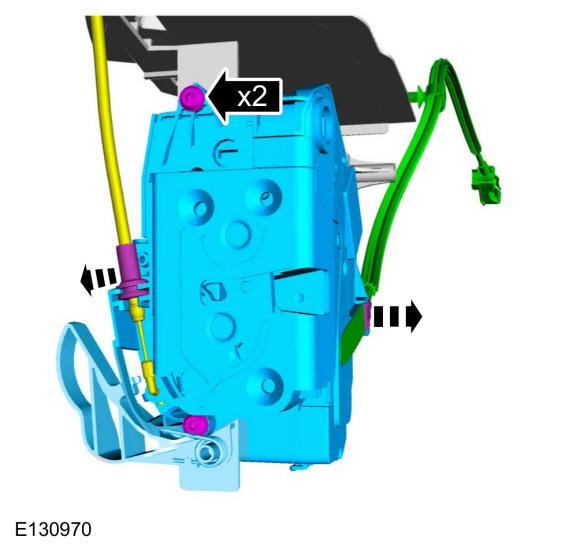

Remove the rear door latch.
- Remove the interior rear door handle cable from the rear door latch.
- Detach and position aside the cable from the rear door latch.
- Remove the screws and the rear door latch.
-
NOTE: This step is only necessary when installing a new component.

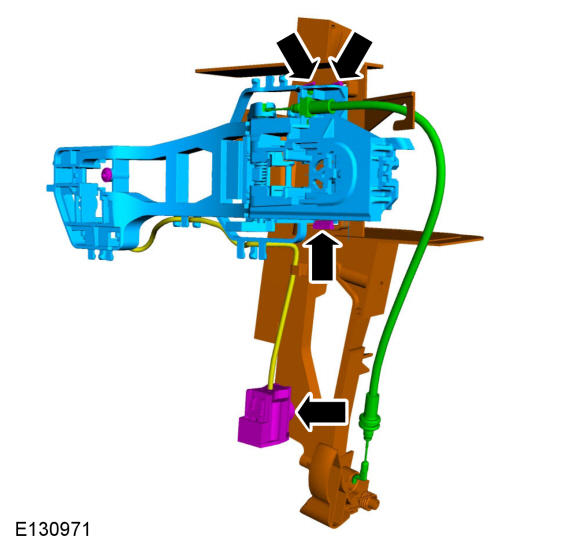

Remove the exterior front door handle reinforcement.
- Release the tab from the front door handle reinforcement.
- Release electrical connector routing clip.
