Front Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the front door speaker. Refer to: Front Door Speaker .
  2. Remove the front door window glass weatherstrip. Refer to: Front Door Window Glass Weatherstrip .

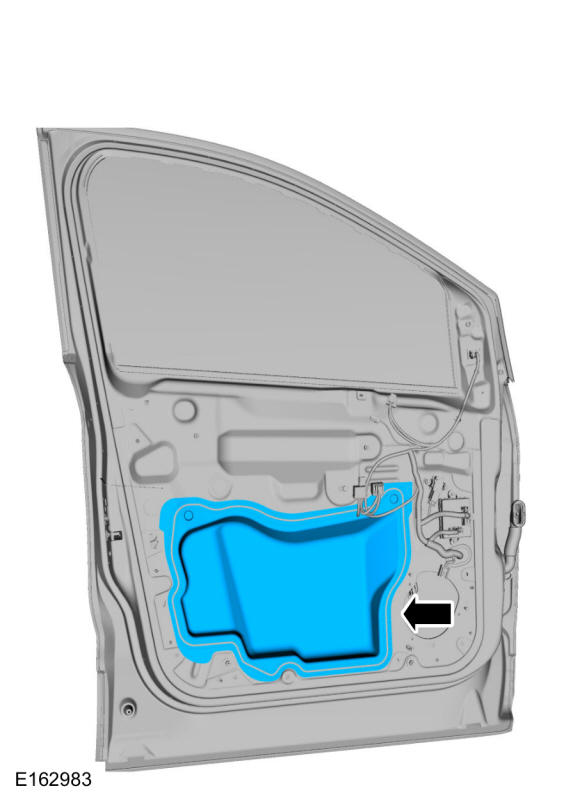

  3. Remove the front door watershield.
    GFD230324Courtesy of FORD MOTOR COMPANY

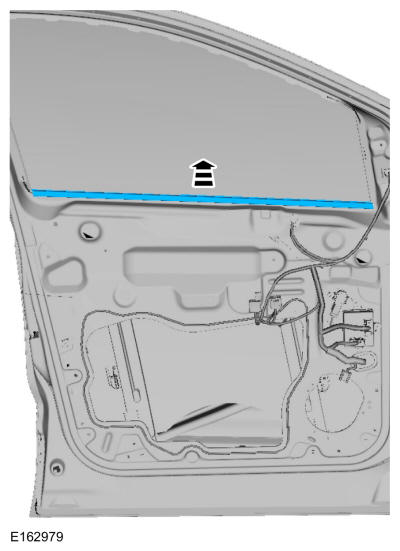

  4. Remove the front door inner belt moulding.
    GFD230325Courtesy of FORD MOTOR COMPANY

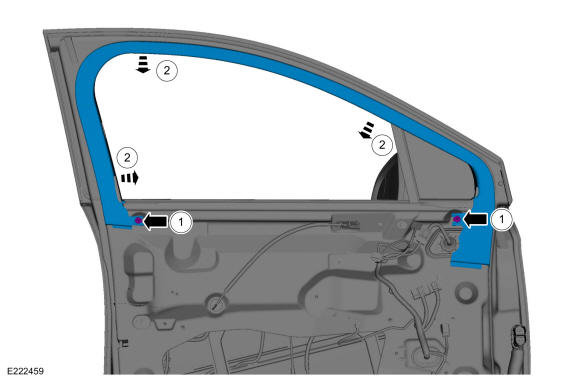

  5. Remove the front door inner window trim.

    1. Remove the push pins.
    2. Remove the front door inner window trim.

    GFD230326Courtesy of FORD MOTOR COMPANY

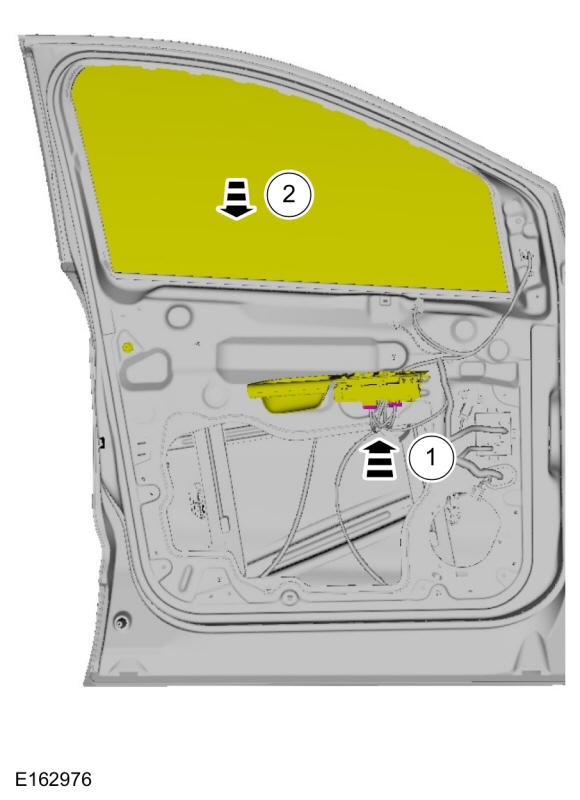

  6. Lower the front door window glass.

    1. Install the front door window control switch.
    2. Lower the front door window glass to access the front door window glass retaining clips.

    GFD230327Courtesy of FORD MOTOR COMPANY

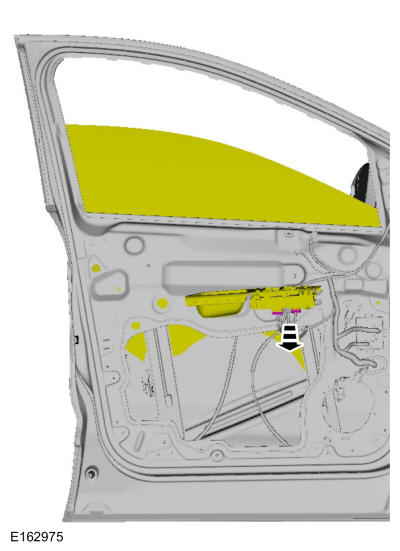

  7. Remove the front door window control switch.
    GFD230328Courtesy of FORD MOTOR COMPANY

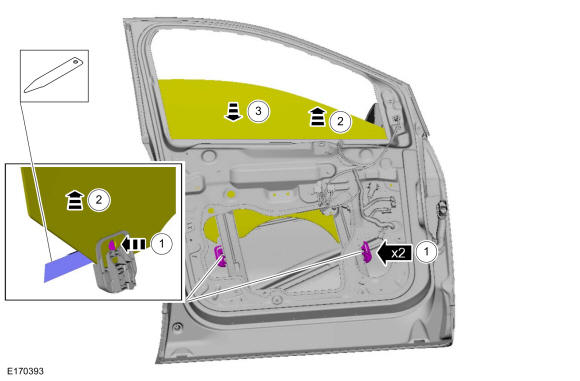

  8. Release the front door window glass.

    1. Using a non-marring trim tool from the outboard side of the glass pry the tang on each clip back releasing the window glass.
    2. Move the window glass up to disengage from the window glass retaining clips completely.
    3. Lower the window glass completely to the bottom of the door.

    GFD230329Courtesy of FORD MOTOR COMPANY

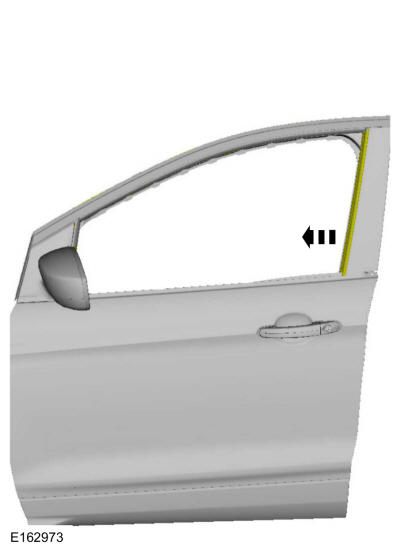

  9. Position aside the front door glass top run.
    GFD230330Courtesy of FORD MOTOR COMPANY

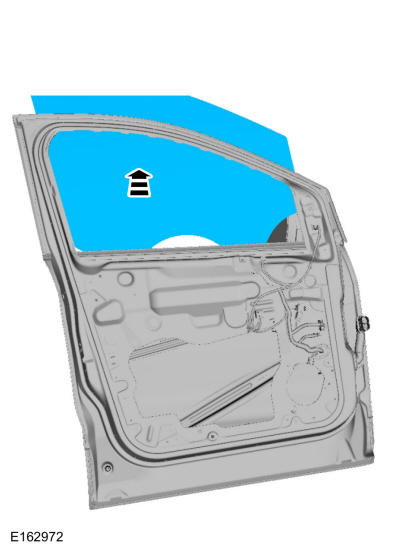

  10. Remove the front door window glass.
GFD230331Courtesy of FORD MOTOR COMPANY
