Front Door Window Glass Weatherstrip: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

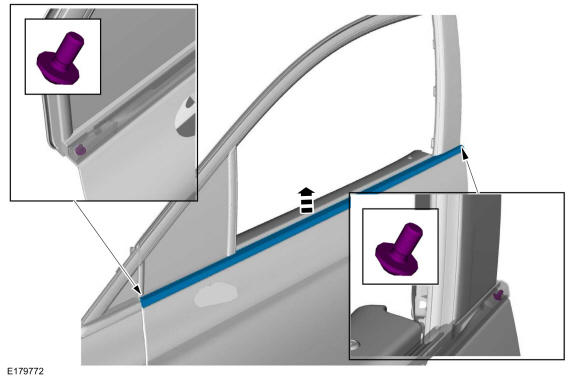

Remove the retainers and remove the front door window glass weatherstrip.
Torque: 12 lb.in (1.3 Nm)

Courtesy of FORD MOTOR COMPANY
