Front Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

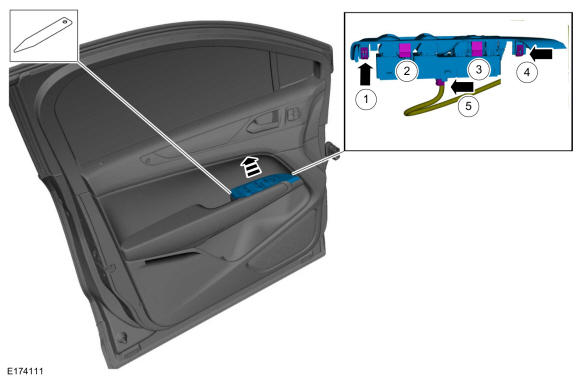

Driver's door

  1. NOTE: Use care when releasing the clips to prevent breakage to the bezel during removal.

    Remove the rear door window control switch.

    1. Using the interior trim remover, release the driver door window control switch rear retaining clip. Use the General Equipment: Interior Trim Remover
    2. Using the interior trim remover, release the driver door window control switch rear snap tab. Use the General Equipment: Interior Trim Remover
    3. Using the interior trim remover, release the driver door window control switch front snap tab. Use the General Equipment: Interior Trim Remover
    4. Using the interior trim remover, release the driver door window control switch front retaining clip. Use the General Equipment: Interior Trim Remover
    5. Disconnect the electrical connector and remove the driver door window control switch.

    GFD230356Courtesy of FORD MOTOR COMPANY

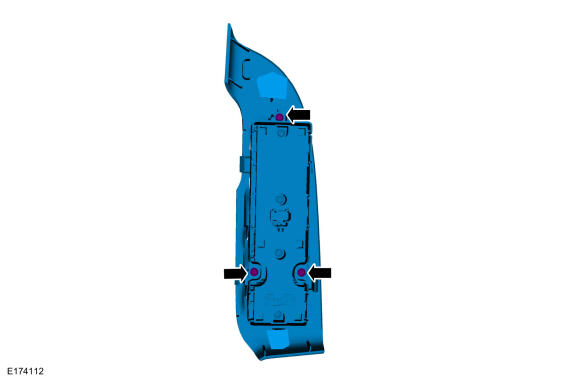

  2. NOTE: This step is only necessary when installing a new component.

    Remove the screws from the driver door window control switch.

    GFD230357Courtesy of FORD MOTOR COMPANY

    Passenger door

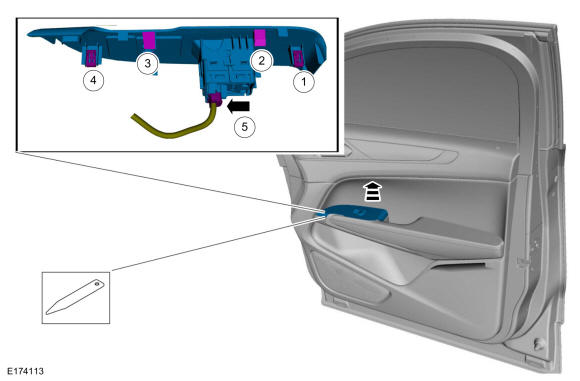

  3. NOTE: Use care when releasing the clips to prevent breakage to the bezel during removal.

    Remove the rear door window control switch.

    1. Using the interior trim remover, release the passenger door window control switch rear retaining clip. Use the General Equipment: Interior Trim Remover
    2. Using the interior trim remover, release the passenger door window control switch rear snap tab. Use the General Equipment: Interior Trim Remover
    3. Using the interior trim remover, release the passenger door window control switch front snap tab. Use the General Equipment: Interior Trim Remover
    4. Using the interior trim remover, release the passenger door window control switch front retaining clip. Use the General Equipment: Interior Trim Remover
    5. Disconnect the electrical connector and remove the passenger door window control switch.

    GFD230358Courtesy of FORD MOTOR COMPANY

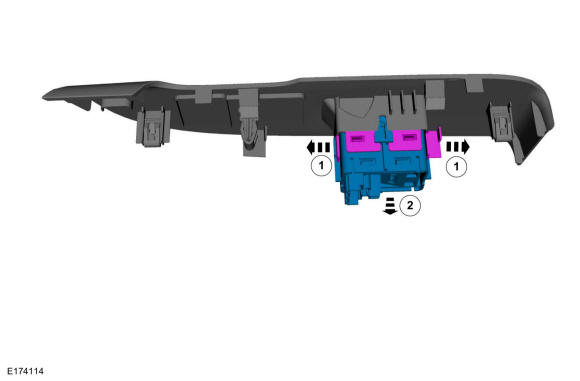

  4. NOTE: This step is only necessary when installing a new component.

    Remove the passenger door window control switch from the bezel.

    1. Release the passenger door window control switch rear retaining tabs.
    2. Remove the passenger door window control switch from the bezel.

GFD230359Courtesy of FORD MOTOR COMPANY
