Front Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.
  1. Remove the front door window glass. Refer to: Front Door Window Glass .
  2. Remove the front door upper moulding. Refer to: Front Door Upper Moulding .
  3. Remove the front door glass top run.

    1. Position aside the top run access cover.
    2. Remove the retainer from the front door glass top run.
    3. Remove the retainer from the front door glass top run.
    4. Remove the retainer from the front door glass top run and remove the front door glass top run.

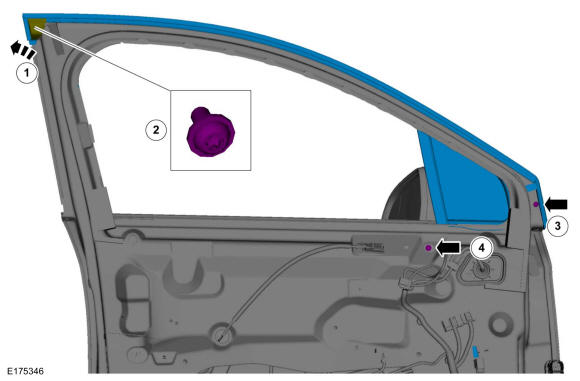

GFD230323Courtesy of FORD MOTOR COMPANY
