Front Door Glass Run and Bracket: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown side, RH side similar.
- Remove the front door latch. Refer to: Front Door Latch .
-
NOTE: This step is only necessary when installing a new component.

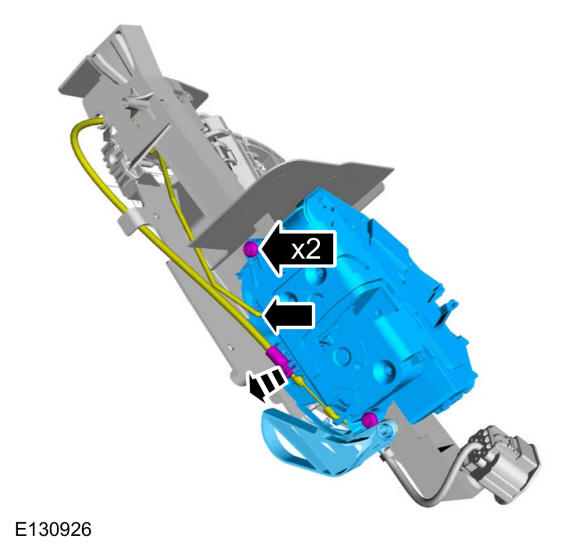

Remove the front door latch.
- Remove the retainers from the front door latch.
- Disconnect the exterior door handle reinforcement cable from the front door latch.
- Disconnect the lock rod from the front door latch.
-
NOTE: This step is only necessary when installing a new component.

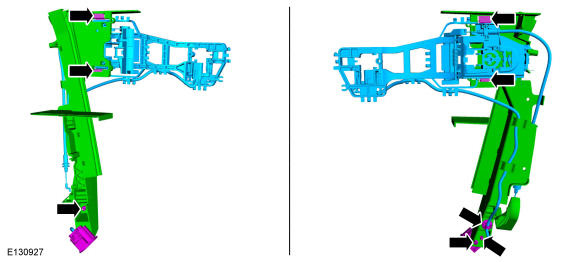

Remove the exterior front door handle reinforcement.
- Release the tab from the exterior front door handle reinforcement.
- Release electrical connector routing clip.
