System Diagram - Power Windows

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

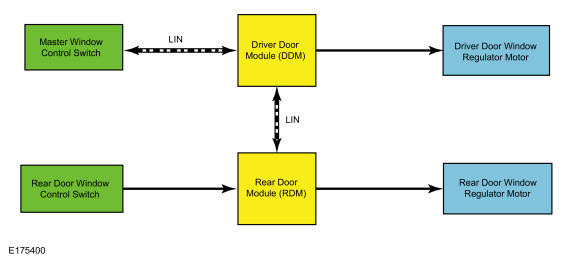

Driver Side Windows

GFD230308Courtesy of FORD MOTOR COMPANY

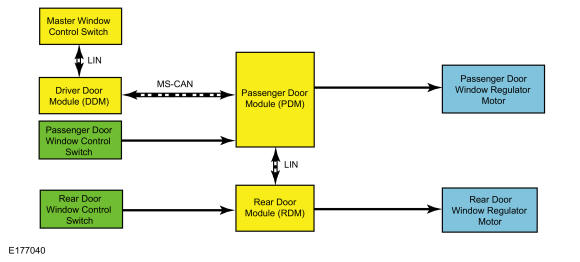

Passenger Side Windows

GFD230309Courtesy of FORD MOTOR COMPANY
