Stoplamp Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not press or pull on brake pedal when installing or removing the stoplamp switch otherwise misadjustment or damage to the stoplamp switch can occur.

NOTE: If equipped.

Remove the LH instrument panel close out panel.
1. Remove the pin-type retainer.
2. Remove the bolts.
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

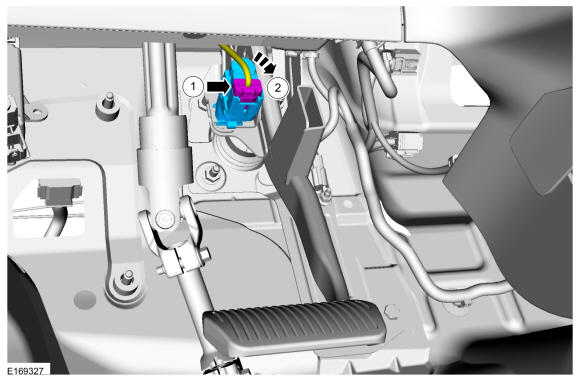

1. Disconnect the stoplamp switch electrical connector.
2. Turn the stoplamp switch clockwise and remove the switch.

Courtesy of FORD MOTOR COMPANY
