Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Tail lamps

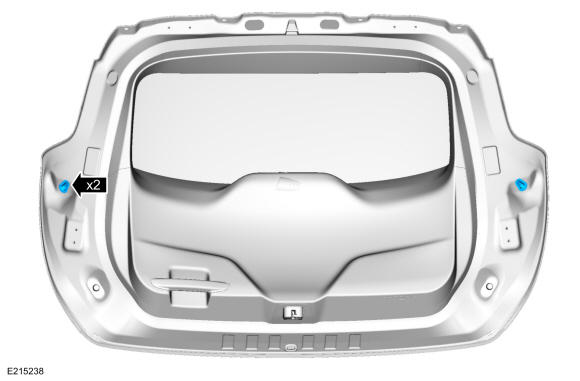

Remove the outer screw trim covers. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the liftgate interior trim panel. REFER to: Interior Trim And Ornamentation .

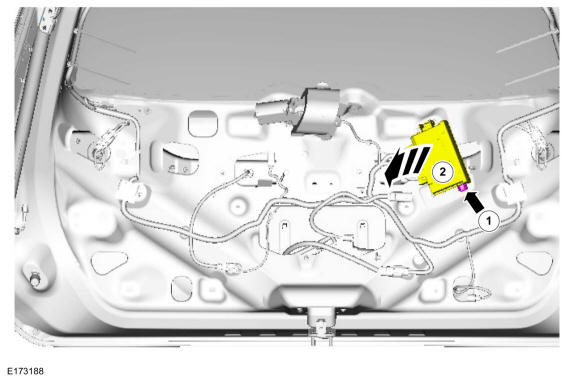

NOTE: For LH tail lamp only.
1. Remove the push pin.
2. Position the liftgate module aside.
Courtesy of FORD MOTOR COMPANY

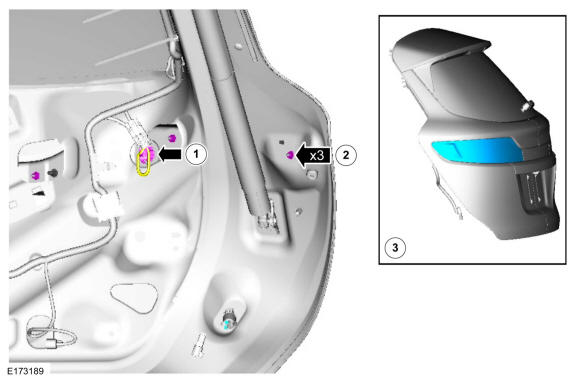

NOTE: LH is shown, RH is similar.
1. Disconnect the electrical connector.
2. Remove the nuts.
3. Remove the rear lamp assembly.
Courtesy of FORD MOTOR COMPANY

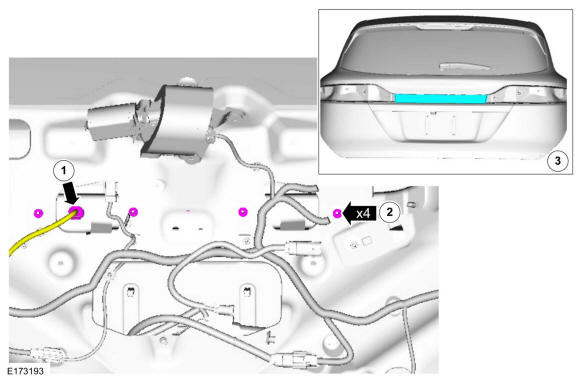

Center
NOTE: The tail lamps must be removed before removing the center rear lamp.
1. Disconnect the electrical connector.
2. Remove the nuts.
3. Remove the center rear lamp assembly.

Courtesy of FORD MOTOR COMPANY
