Rear Fog Lamp: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

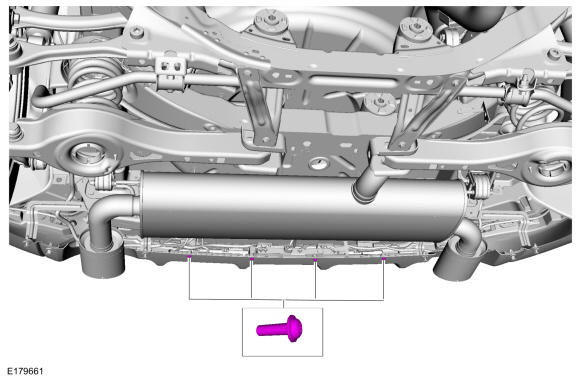

  1. Remove the lower bumper bracket screws.
    GFD229914Courtesy of FORD MOTOR COMPANY

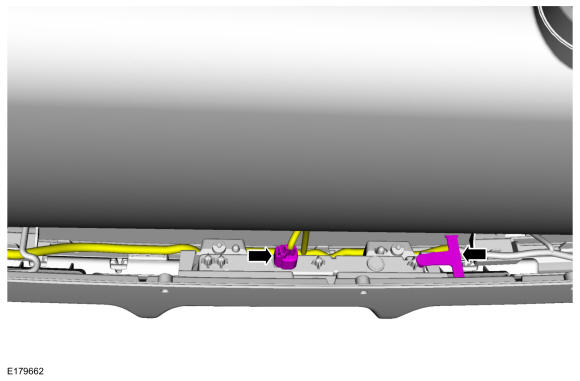

  2. Disconnect the rear fog lamp electrical connector and hire harness guide.
    GFD229915Courtesy of FORD MOTOR COMPANY

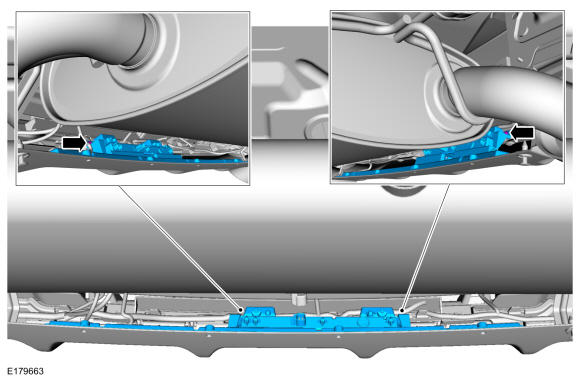

  3. Remove the upper bumper bracket screws and the bumper bracket assembly.
    GFD229916Courtesy of FORD MOTOR COMPANY

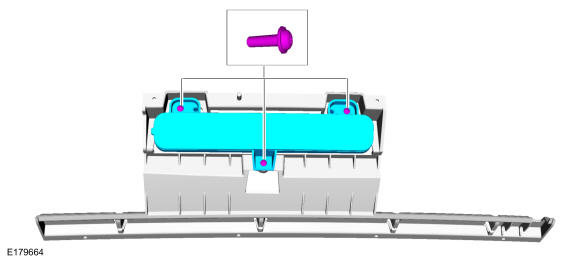

  4. Remove the screws and the rear fog lamp.
GFD229917Courtesy of FORD MOTOR COMPANY
