Light Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

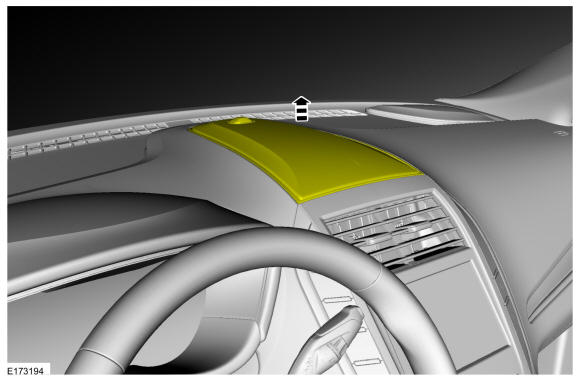

  1. Position the speaker grille up.
    GFD229902Courtesy of FORD MOTOR COMPANY

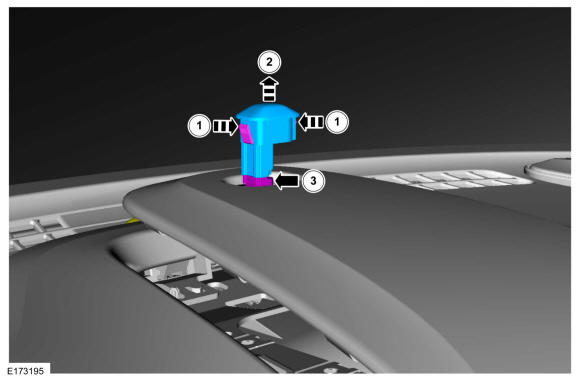

    1. Press 2 tabs.
    2. Position the light sensor up.
    3. Disconnect the electrical connector.
GFD229903Courtesy of FORD MOTOR COMPANY
