Headlamp Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH finish panel.
    GFD229829Courtesy of FORD MOTOR COMPANY
  2. Remove the LH trim panel.
    GFD229830Courtesy of FORD MOTOR COMPANY

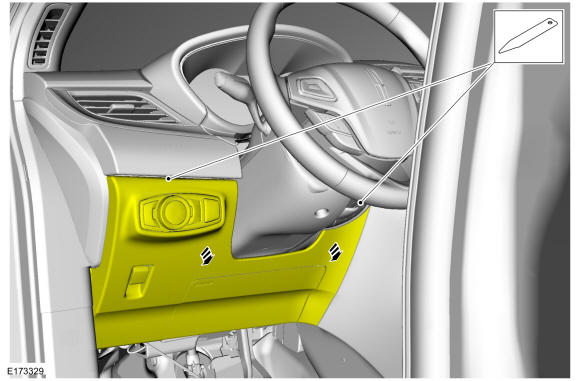

  3. Position the steering column closeout panel aside.
    GFD229899Courtesy of FORD MOTOR COMPANY

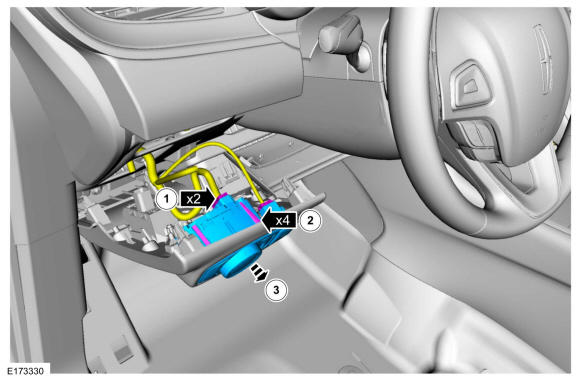

    1. Disconnect the 2 electrical connectors.
    2. Release the 4 tabs.
    3. Remove the headlamp switch.
GFD229900Courtesy of FORD MOTOR COMPANY
