Headlamp Bulb: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Make sure the headlamp switch and the ignition are OFF.

Remove the fender splash shield. REFER to: Fender Splash Shield .

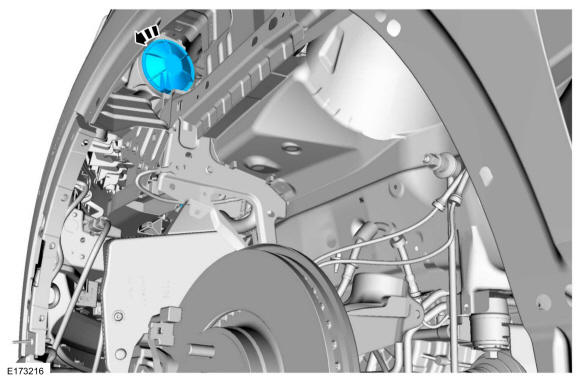

Remove the headlamp bulb cover.

Courtesy of FORD MOTOR COMPANY
WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE: The headlamp bulb should not be removed from the headlamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed.

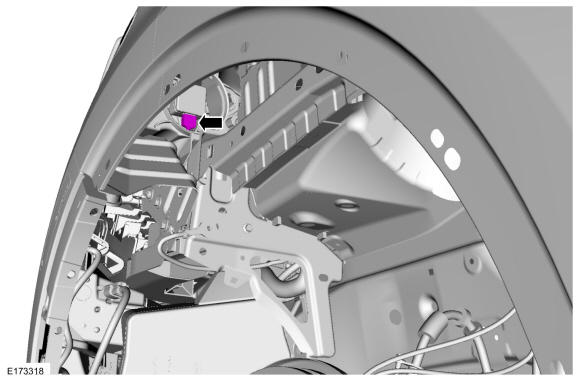

Disconnect the headlamp bulb electrical connector.

Courtesy of FORD MOTOR COMPANY

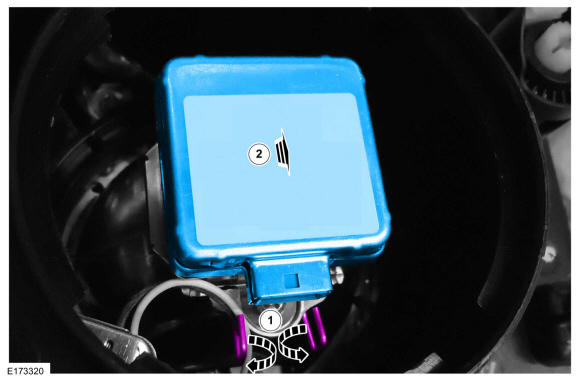

1. Squeeze the tabs together lift up and release the spring retainers.
2. Remove the headlamp bulb.

Courtesy of FORD MOTOR COMPANY
